Detail

Specs

· IP68 & IP69K & MIL-STD-810H
· 6nm 5G Octa-core Processor
· 20080mAh Mega Battery
· Super Campinglight
· 20MP Night Vision Camera
· 11" FHD+ Display & 120Hz Refresh Rate
· (8+12)GB RAM, 256GB ROM

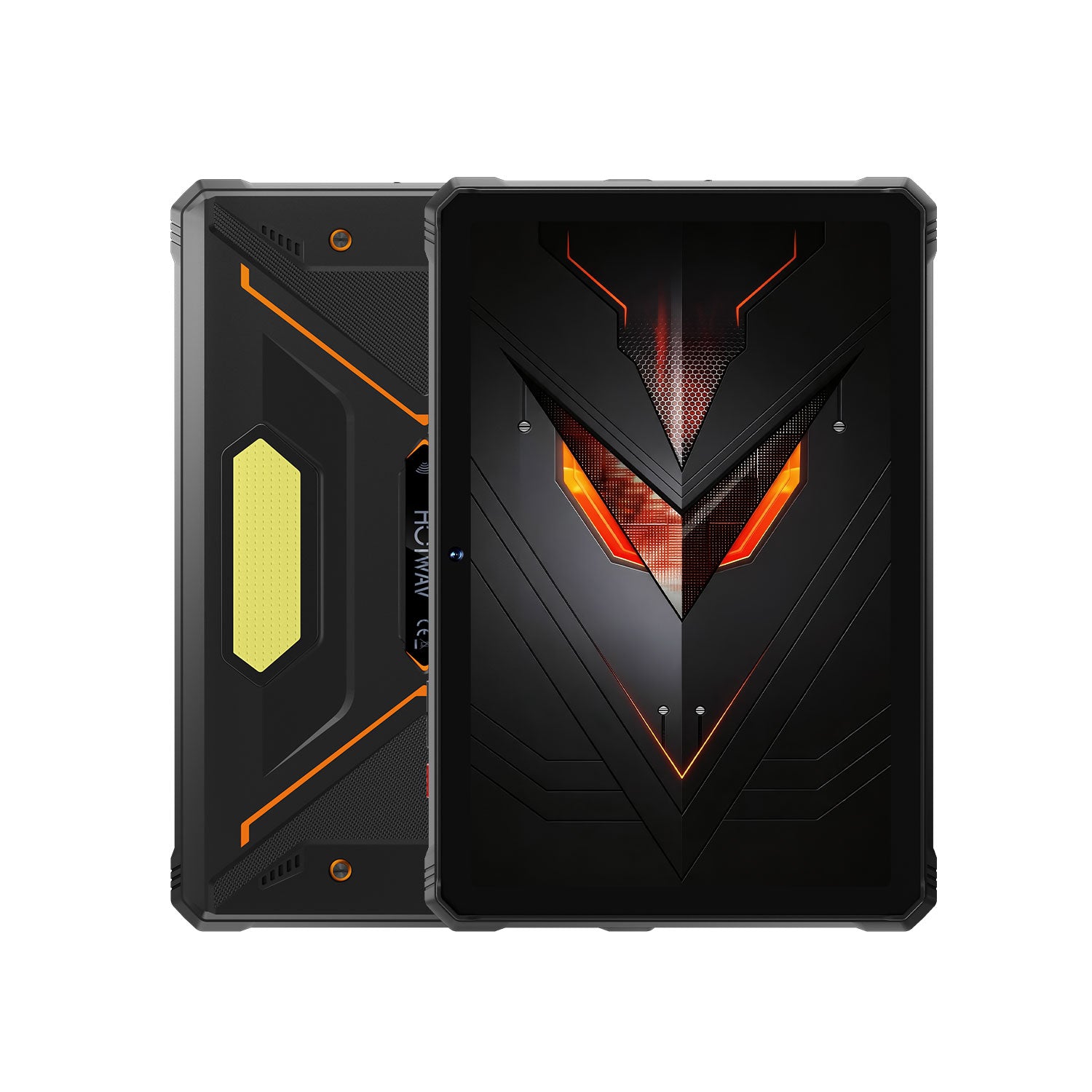

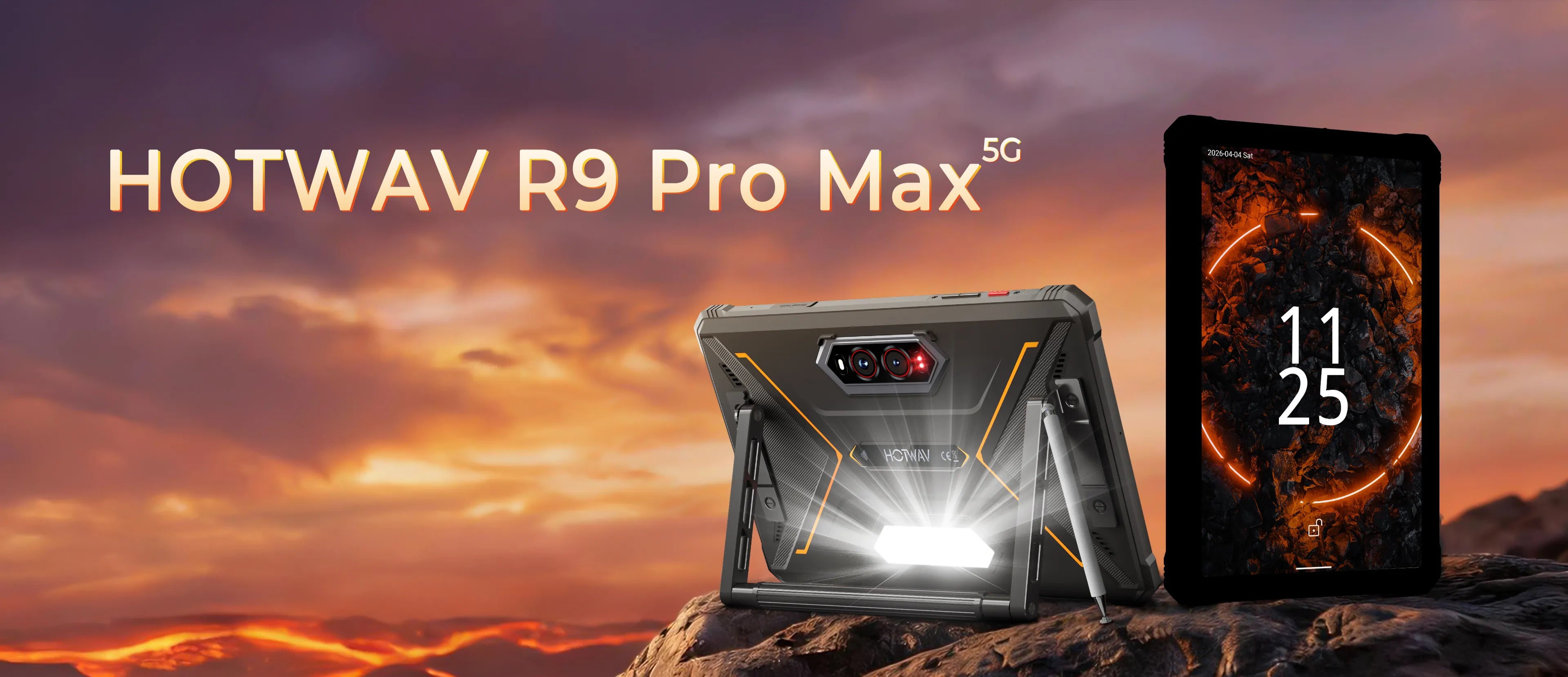

HOTWAV R9 Pro Max

IP68 & IP69K & MIL-STD-810H | Super Campinglight
20080mAh Mega Battery | 6nm 5G Octa-core Processor
20MP Night Vision Camera | (8+12)GB RAM, 256GB ROM
11" FHD+ Display & 120Hz Refresh Rate

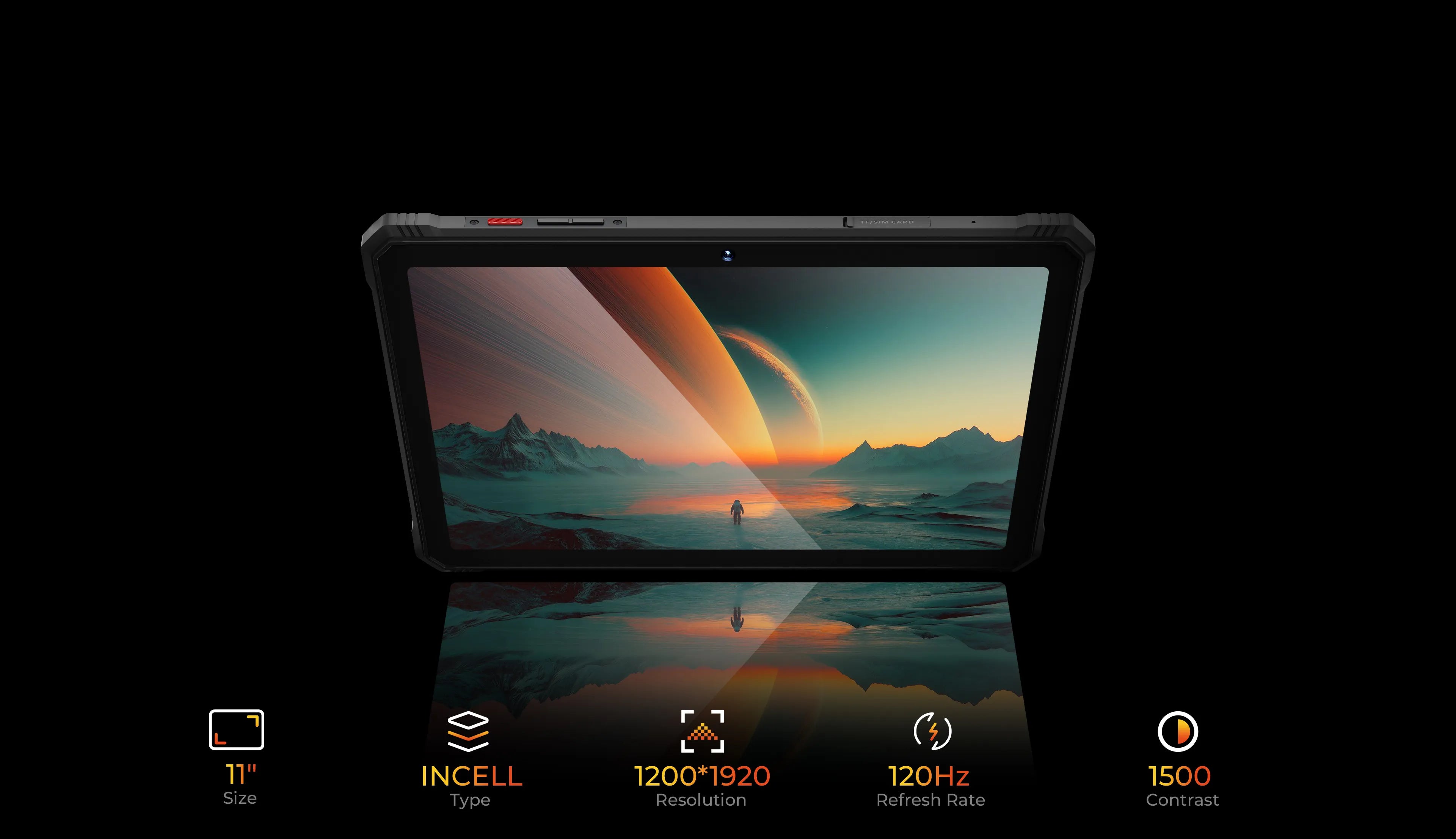

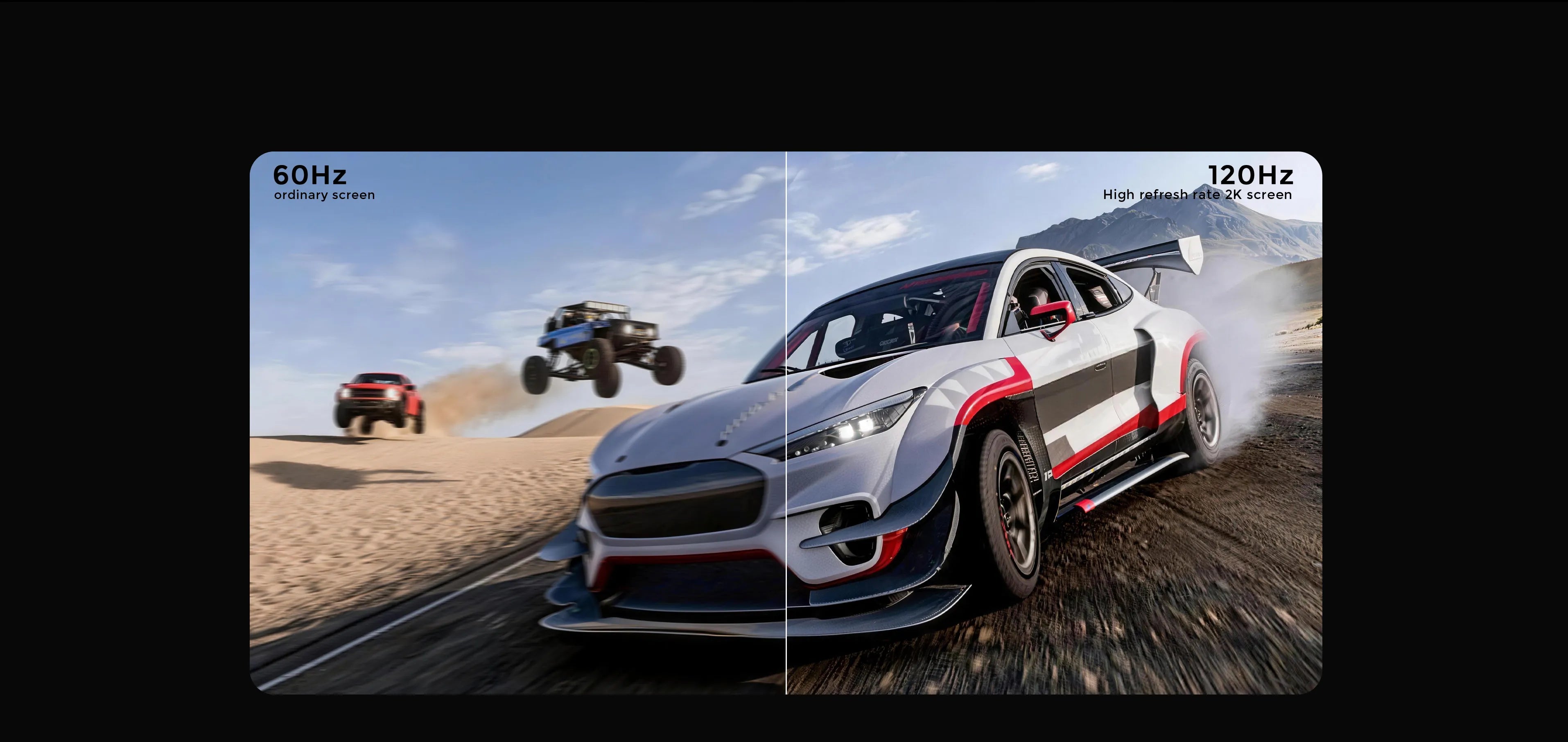

11" 2K-Class Screen: A Display That Pulls You In

Step into a bigger, sharper world with the 11 inch 2K class display on HOTWAV R9 Pro Max. Every frame
comes alive with rich color and striking clarity, whether you are watching, working, or playing. The expansive screen gives
you room to focus, while remaining comfortable on your eyes even during long sessions.

11" 2K-Class Screen: A Display That Pulls You In

Step into a bigger, sharper world with the 11 inch 2K class display on HOTWAV R9 Pro Max. Every frame
comes alive with rich color and striking clarity, whether you are watching, working, or playing. The expansive screen gives
you room to focus, while remaining comfortable on your eyes even during long sessions.

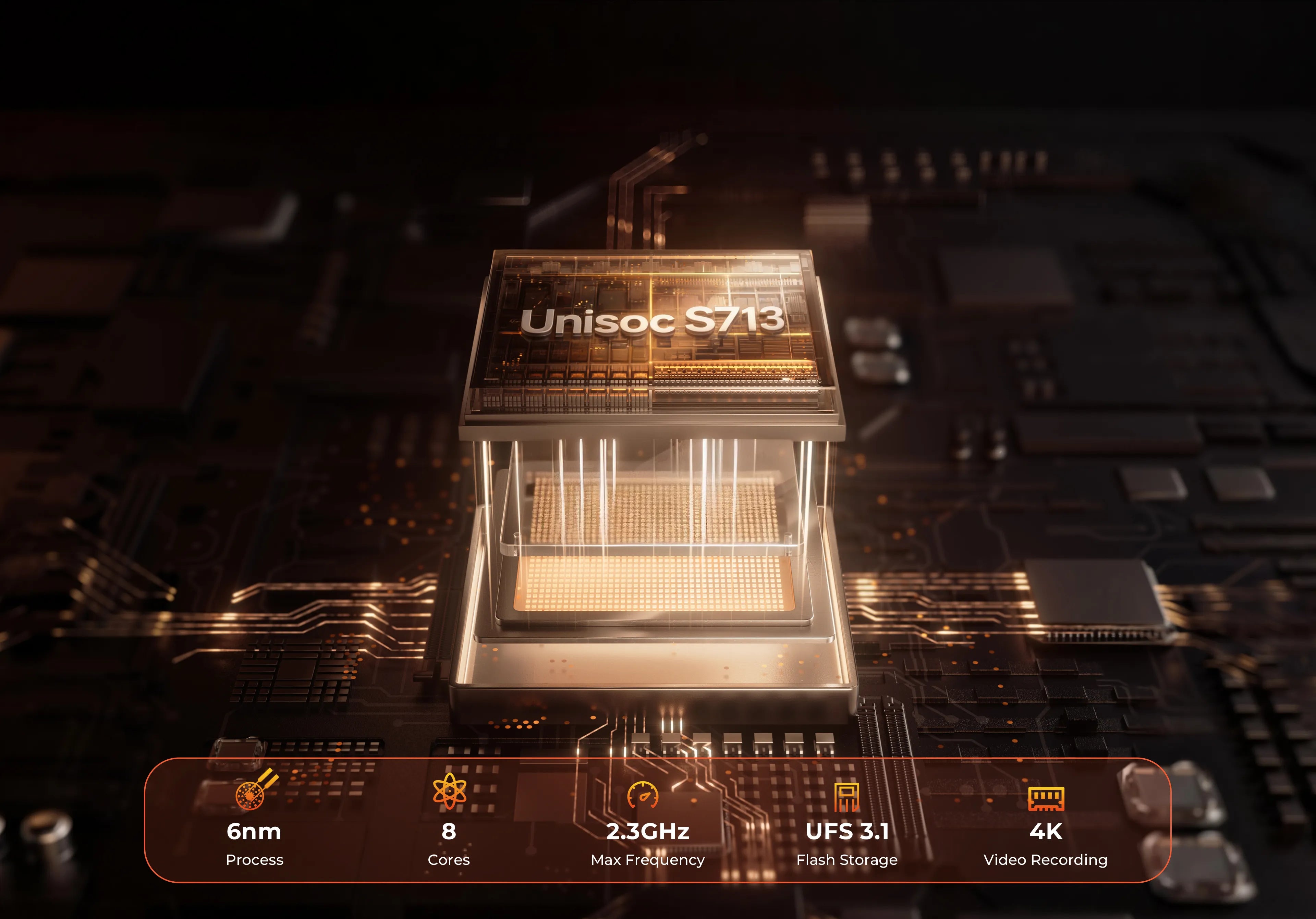

Advanced 5G Speed Built on 6nm
Engineering

At the core of HOTWAV R9 Pro Max is a powerful 5G processor built on advanced 6nm technology. Everything feels faster and
smoother, from launching apps to handling demanding tasks. With intelligent display tuning and fluid performance, it adapts naturally to whatever
you are doing, delivering both speed and efficiency without compromise.

Advanced 5G Speed Built on 6nm
Engineering

At the core of HOTWAV R9 Pro Max is a powerful 5G processor built on advanced 6nm technology.
Everything feels faster and smoother, from launching apps to handling demanding tasks. With intelligent
display tuning and fluid performance, it adapts naturally to whatever you are doing, delivering both speed
and efficiency without compromise.

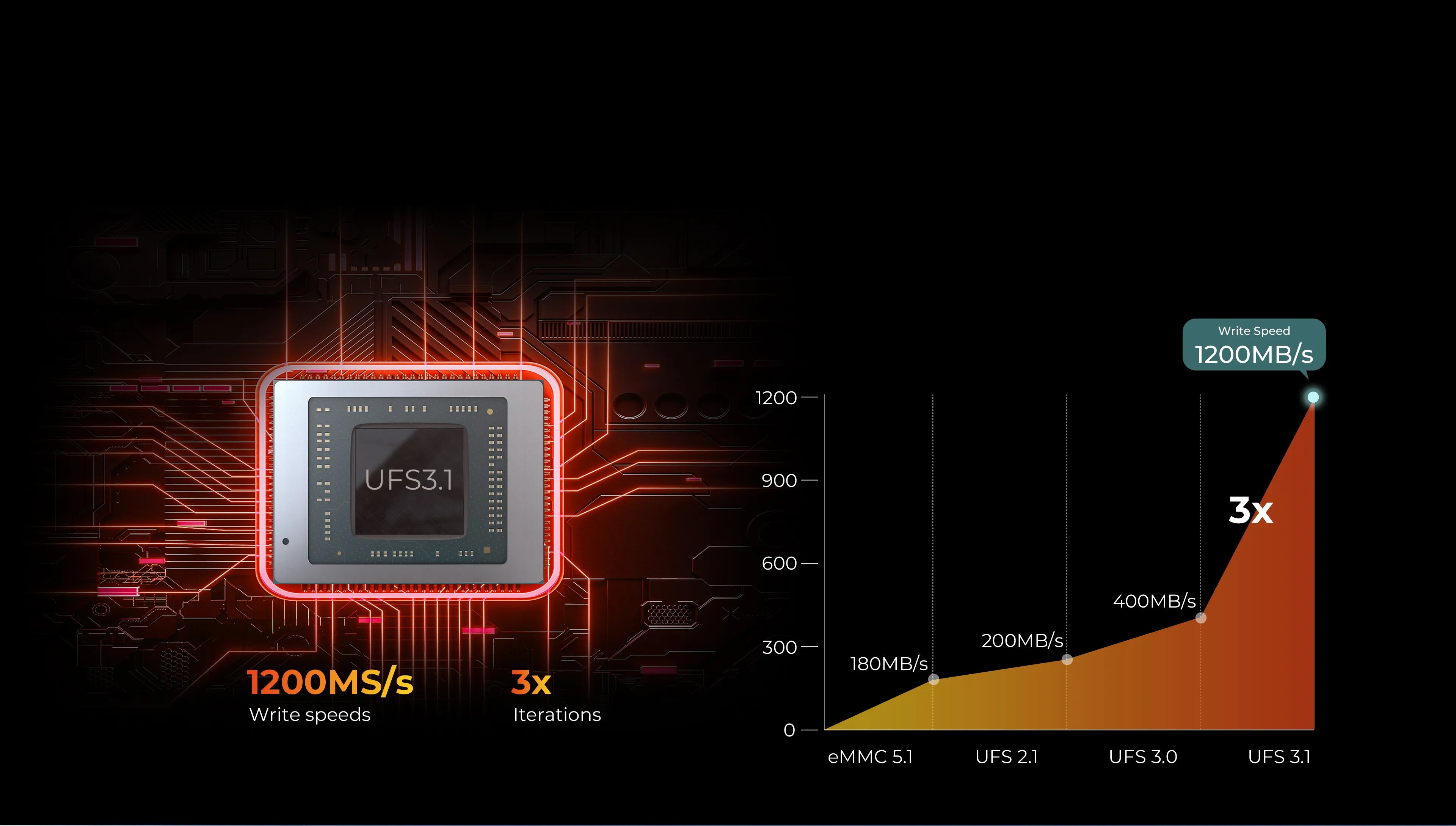

UFS 3.1: Blazing Fast Data Speeds

With next generation UFS 3.1 technology, data moves at remarkable speed. Files load instantly, downloads feel seamless, and
multitasking becomes second nature. It is built for a world where waiting is no longer an option.

UFS 3.1: Blazing Fast Data Speeds

With next generation UFS 3.1 technology, data moves at remarkable speed. Files load instantly, downloads feel seamless, and
multitasking becomes second nature. It is built for a world where waiting is no longer an option.

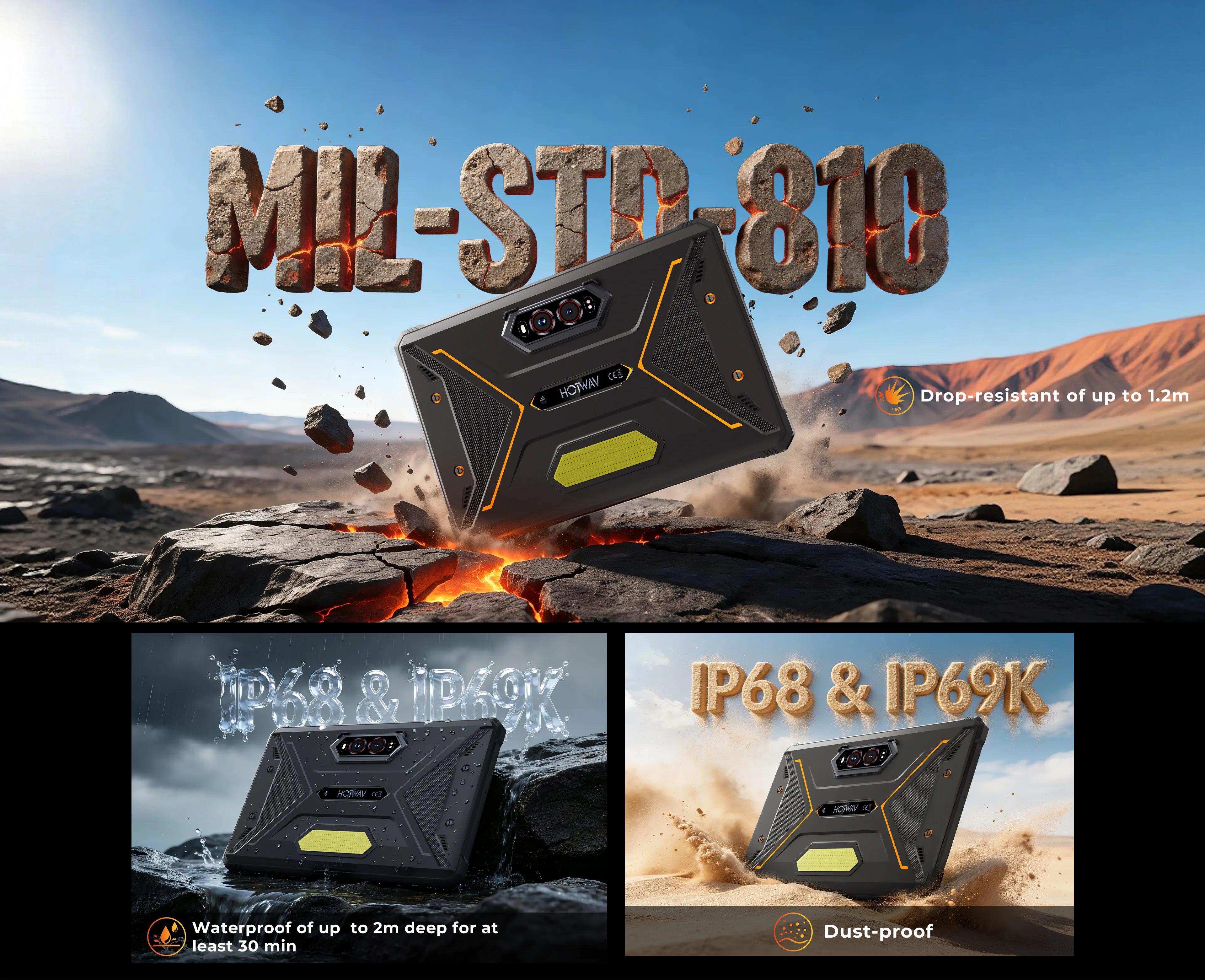

Enjoy your camping life without any worries.

With IP68 & IP69K& MIL-STD-810, and designed to survive inharsh environments, HOTWAV R9 Pro Max
is engineered to conquer the outdoor and demanding-environment as you wish!

Enjoy your camping life without any worries.

With IP68 & IP69K& MIL-STD-810, and designed to survive inharsh environments, HOTWAV R9 Pro Max
is engineered to conquer the outdoor and demanding-environment as you wish!

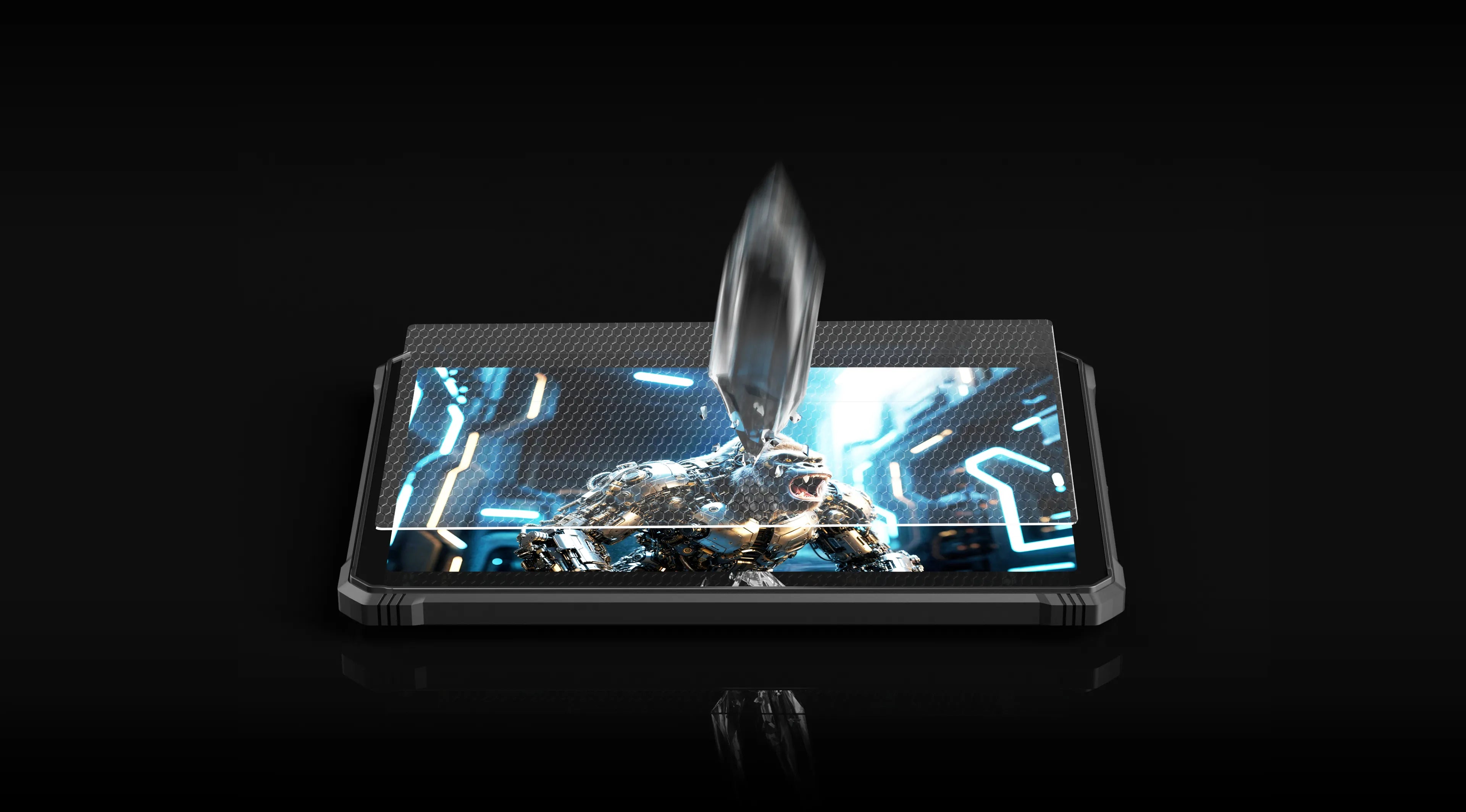

Corning® Gorilla® Glass 3

Protected by Corning® Gorilla® Glass 3,HOTWAV R9 Pro Max is made to handle real life.
Scratches, bumps, and rough conditions are part of the journey, and this device is ready for all of it while keeping
its display clear and responsive.

Corning® Gorilla® Glass 3

Protected by Corning® Gorilla® Glass 3,HOTWAV R9 Pro Max is made to handle
real life. Scratches, bumps, and rough conditions are part of the journey, and this device is
ready for all of it while keeping its display clear and responsive.

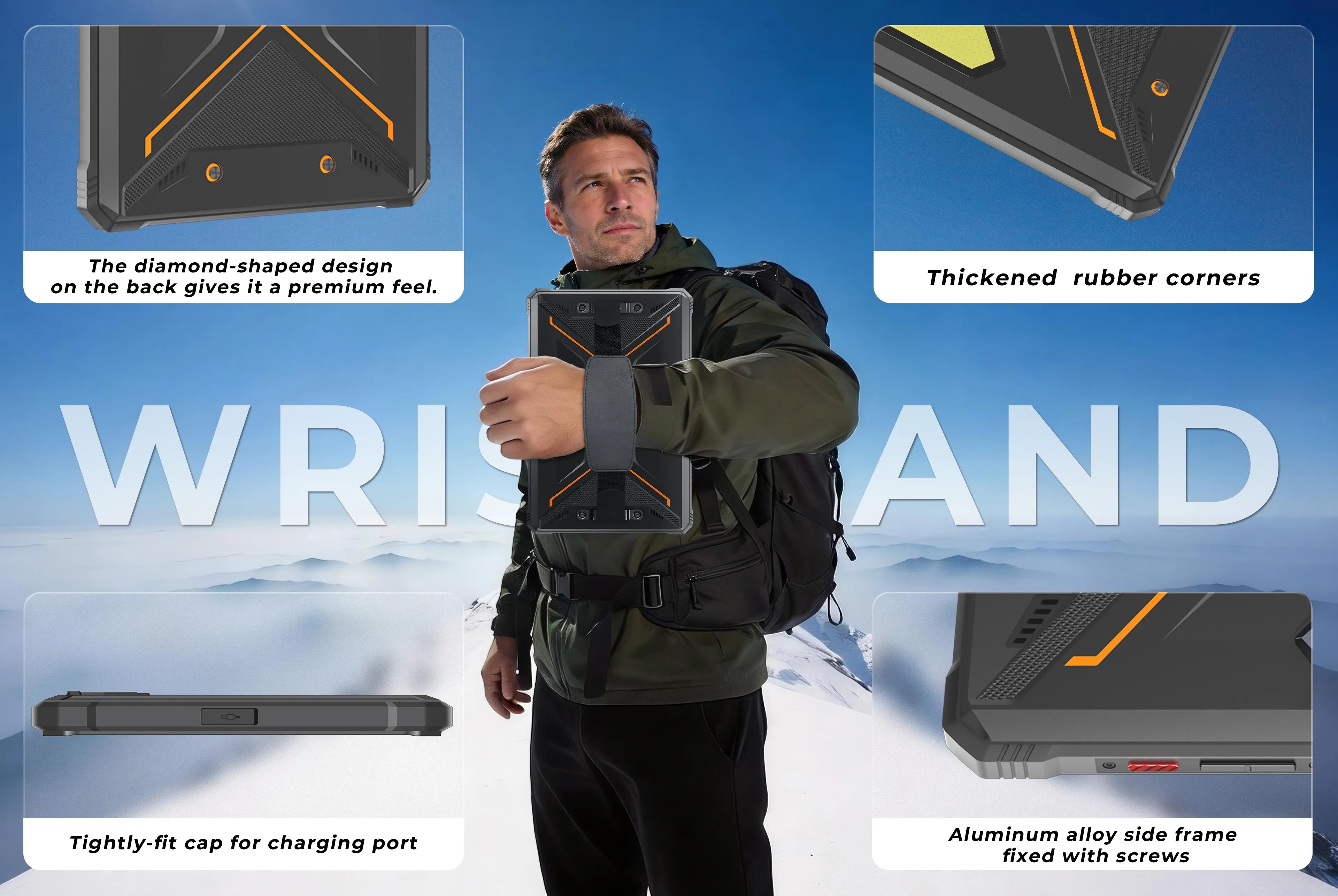

Comfort and Mobility

Work comfortably wherever you are with HOTWAV R9 Pro Max. A built in
stand supports hands free use, while the rear strap offers a secure grip
on the move. It adapts easily between work and exploration, keeping you
efficient in any setting.

Comfort and Mobility

Work comfortably wherever you are with HOTWAV R9 Pro Max. A built in
stand supports hands free use, while the rear strap offers a secure grip
on the move. It adapts easily between work and exploration, keeping you
efficient in any setting.

Stylus Pen: Precision in Every Touch

The stylus transforms the way you interact. Write, draw, and capture ideas with accuracy, even in
challenging outdoor conditions. It brings control and creativity together wherever you are.

Stylus Pen: Precision in Every Touch

The stylus transforms the way you interact. Write, draw, and capture ideas with accuracy, even in
challenging outdoor conditions. It brings control and creativity together wherever you are.

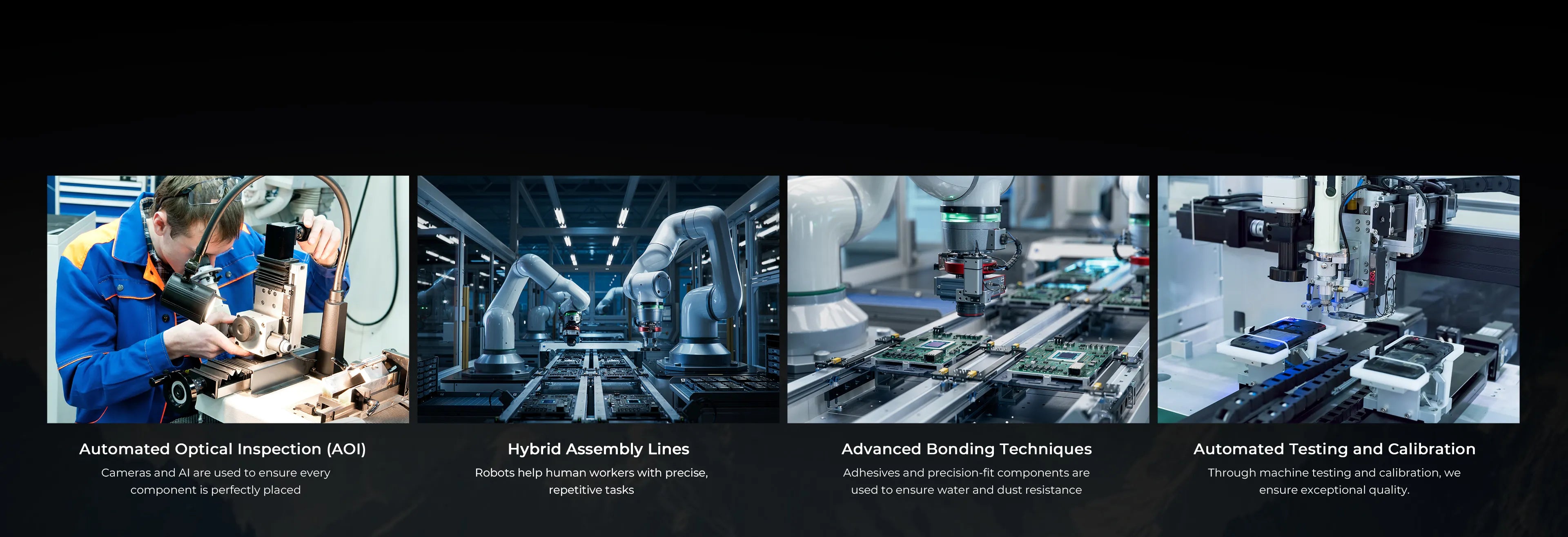

Advanced Assembly and Testing Powered by Cutting-Edge Technology

HOTWAV stays at the forefront of manufacturing innovation, using advanced assembly and testing processes to deliver products
that perform reliably even under extreme conditions.

Advanced Assembly and Testing Powered by Cutting-Edge Technology

HOTWAV stays at the forefront of manufacturing innovation, using advanced assembly and testing
processes to deliver products that perform reliably even under extreme conditions.

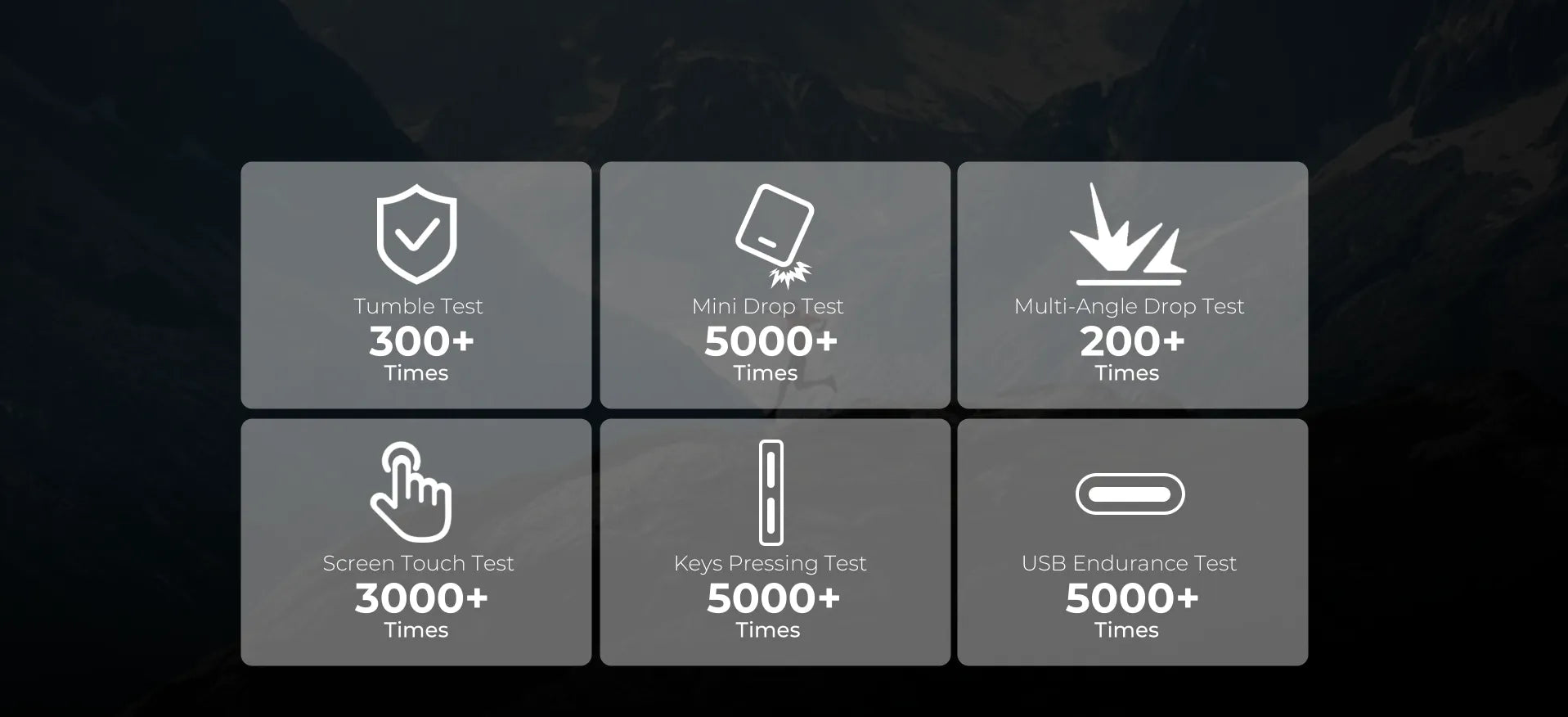

Excruciating Testing for the Toughest Challenges

From demanding worksites to remote landscapes, this tablet is designed to keep performing. Tested under
extreme conditions, it stands strong when reliability matters most.

Excruciating Testing for the Toughest Challenges

From demanding worksites to remote landscapes, this tablet is designed to keep performing.
Tested under extreme conditions, it stands strong when reliability matters most.

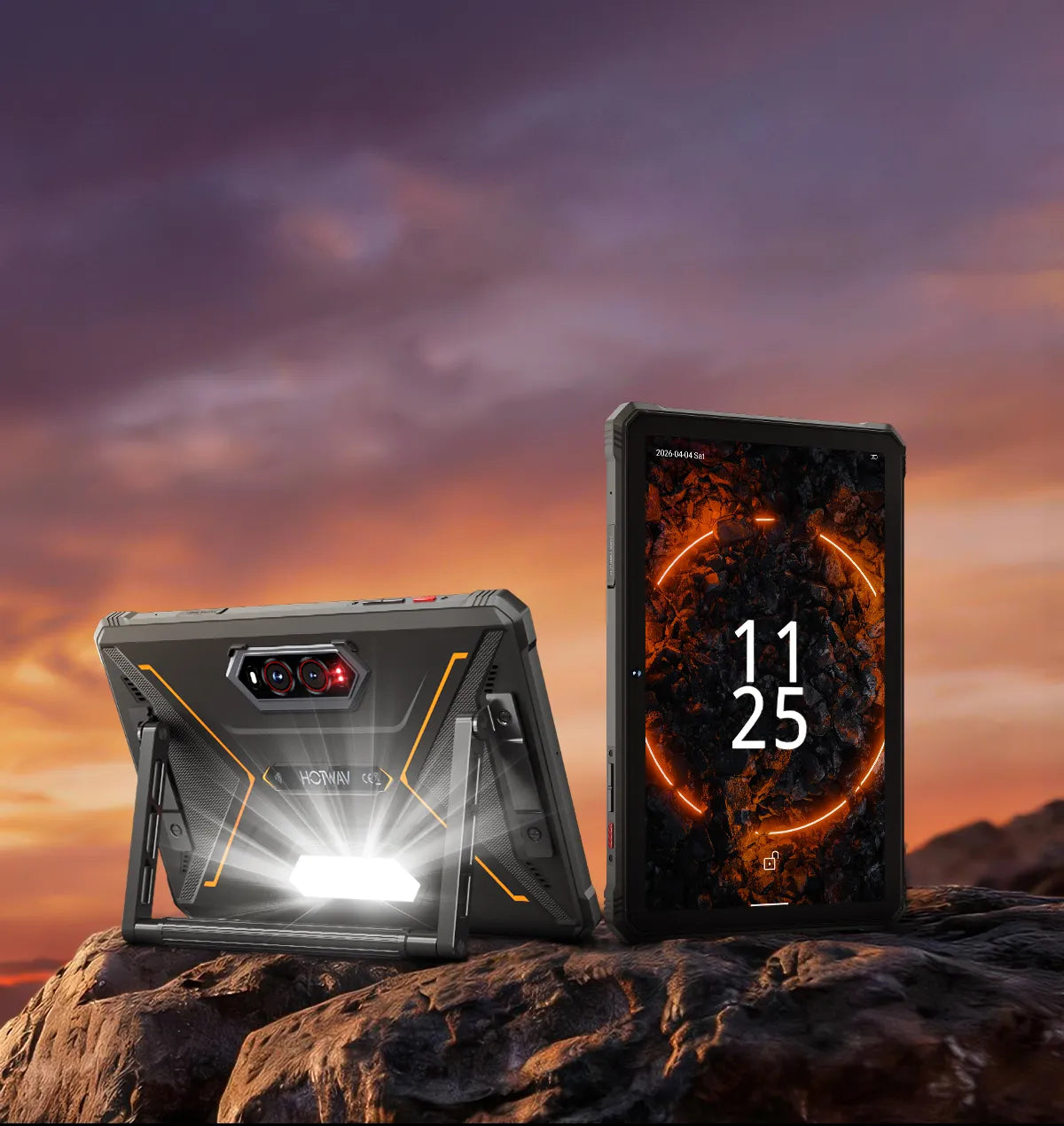

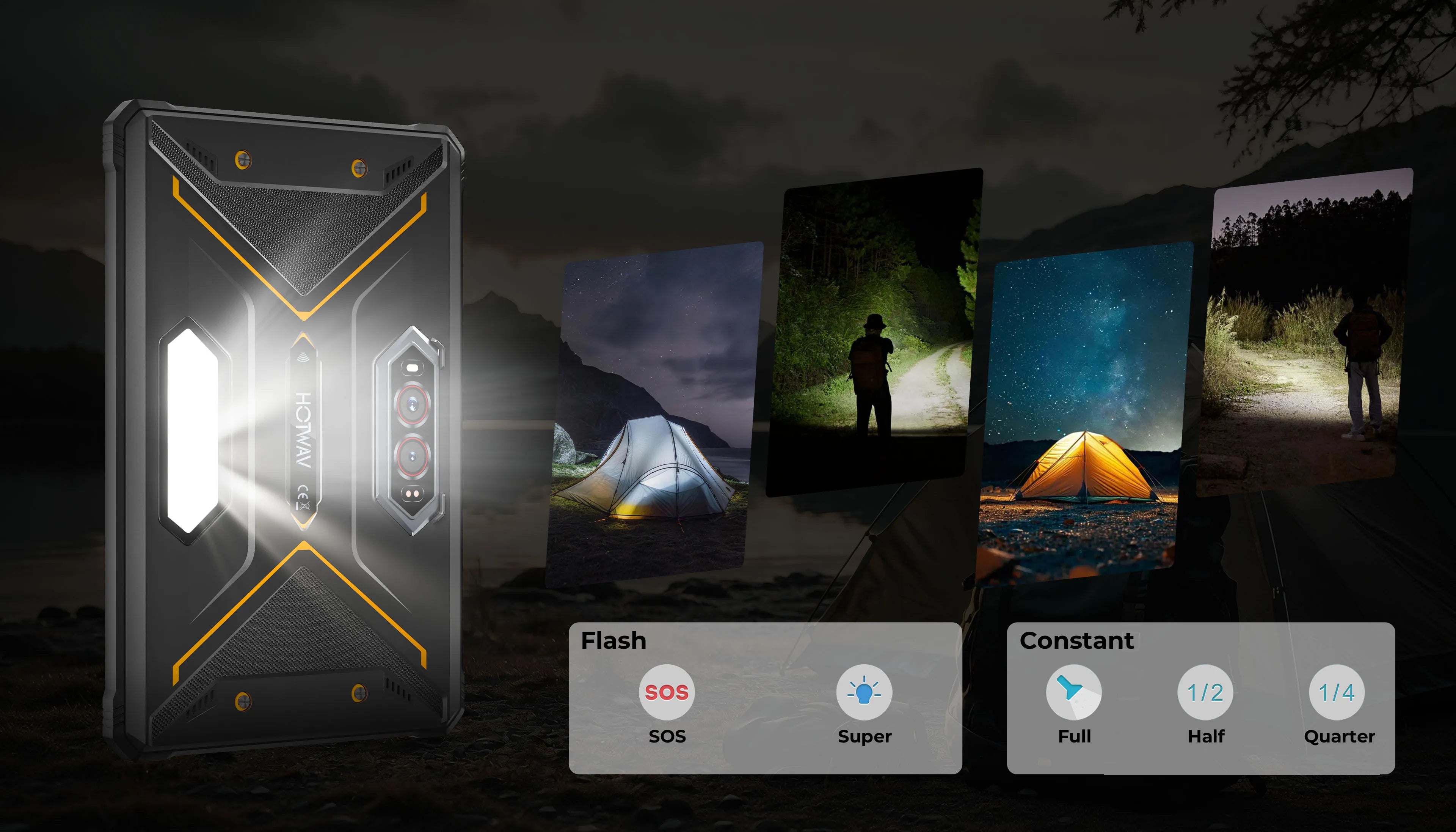

Light That Transforms the Night

Turn darkness into clarity with a powerful rear camping light on HOTWAV R9 Pro Max.
Bright, focused, and far reaching, it illuminates your surroundings with confidence. Whether you are outdoors or
facing unexpected situations, it becomes a dependable source of light when you need it most.

Light That Transforms the Night

Turn darkness into clarity with a powerful rear camping light on HOTWAV R9 Pro Max.
Bright, focused, and far reaching, it illuminates your surroundings with confidence. Whether you are outdoors or
facing unexpected situations, it becomes a dependable source of light when you need it most.

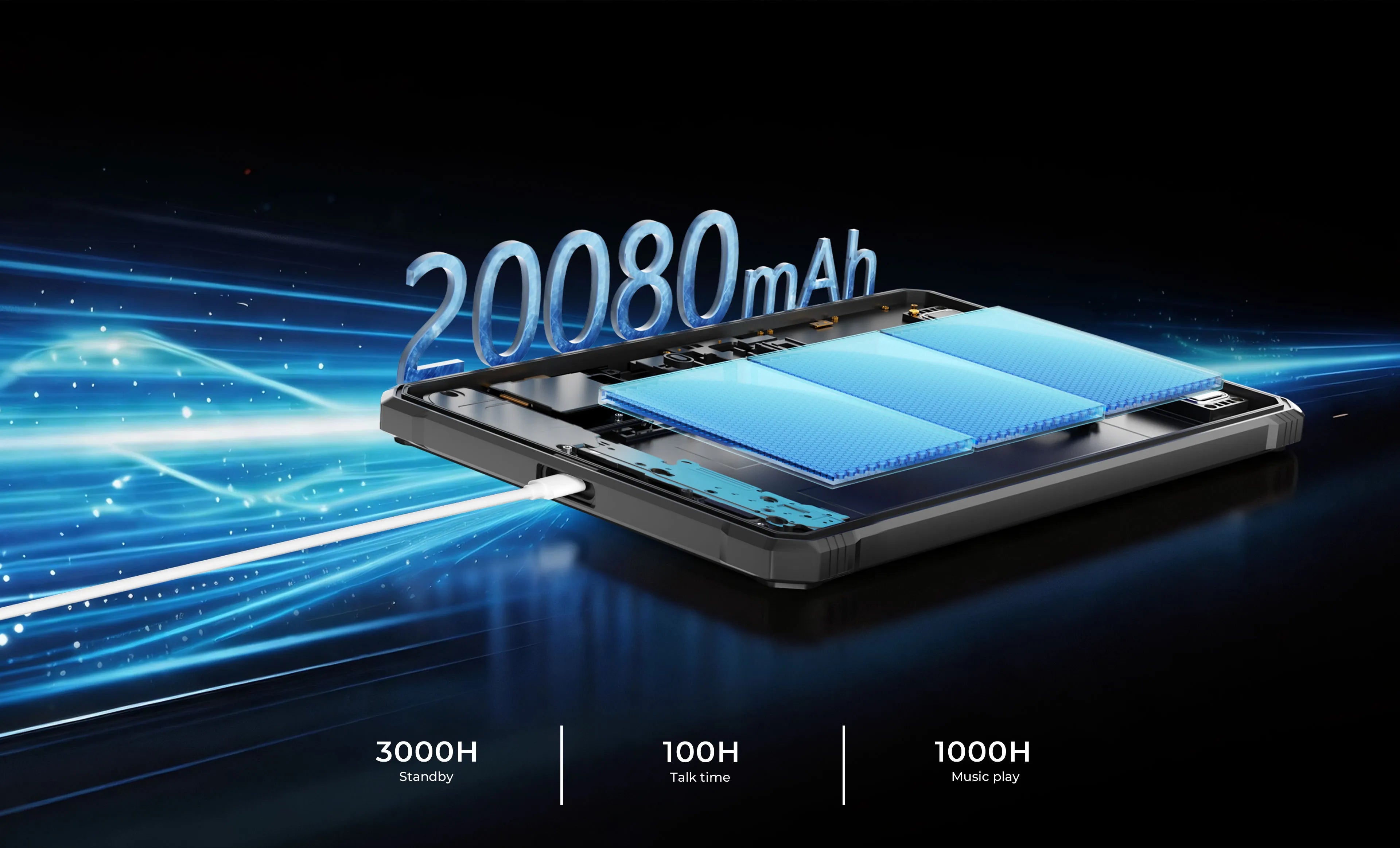

20,080mAh Battery:
Power That Lasts and Lasts

With a massive 20080 mAh battery, HOTWAV R9 Pro Max keeps going long after others stop. From extended
standby time to continuous daily use, it is built for journeys where charging is not always an option.

20,080mAh Battery:
Power That Lasts and Lasts

With a massive 20080 mAh battery, HOTWAV R9 Pro Max keeps going long after others stop. From extended
standby time to continuous daily use, it is built for journeys where charging is not always an option.

Enjoy every outdoor trip without battery anxiety

20W Fast Charge and
Reverse Charge

Smart Thermal Design

Bright outdoor visibility meets smart thermal design. Even under strong
sunlight, the display on HOTWAV R9 Pro Max remains vivid and performance
stays stable, so you can keep going without interruption.

Smart Thermal Design

Bright outdoor visibility meets smart thermal design. Even under strong
sunlight, the display on HOTWAV R9 Pro Max remains vivid and performance
stays stable, so you can keep going without interruption.

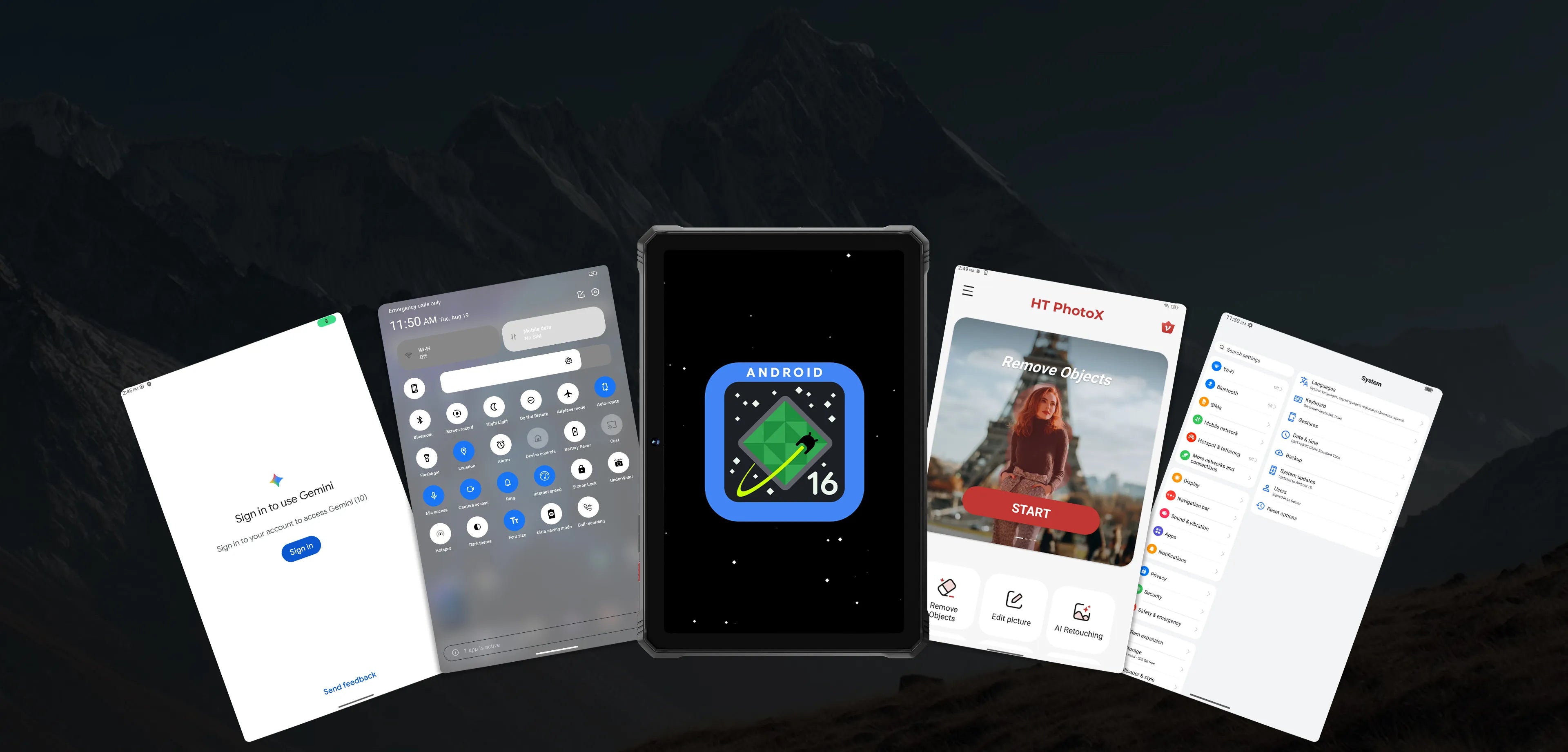

Introducing Hi Hoti
And HT PhotoX:

HOTWAV's two powerful Proprietary Powerful AI Toolsets for
taking your life and tech experience to the next level

Introducing Hi Hoti
And HT PhotoX:

HOTWAV's two powerful Proprietary Powerful AI Toolsets for
taking your life and tech experience to the next level

Hi Hoti: A Powerful AI Toolset for
Intellectual Tasks

Turn big ideas and hard problems into simple solutions with Hi Hoti, a powerful AI suite featuring GPT-5, DeepSeek,
Text-to-Image, Text-to-Music, Document Analysis, and Homework Tutoring. You can also chat with a diverse group
of AI characters, each with distinct personalities, for truly engaging and thought-provoking conversations.

Hi Hoti: A Powerful AI Toolset for
Intellectual Tasks

Turn big ideas and hard problems into simple solutions with Hi Hoti, a powerful AI suite featuring GPT-5, DeepSeek,
Text-to-Image, Text-to-Music, Document Analysis, and Homework Tutoring. You can also chat with a diverse group
of AI characters, each with distinct personalities, for truly engaging and thought-provoking conversations.

Dual AI engines unite versatile creativity and in-depth wisdom. Empowering
content creation, professional analysis and logical problem-solving, they
deliver sleek, premium AI interactions and boundless intelligent potential.

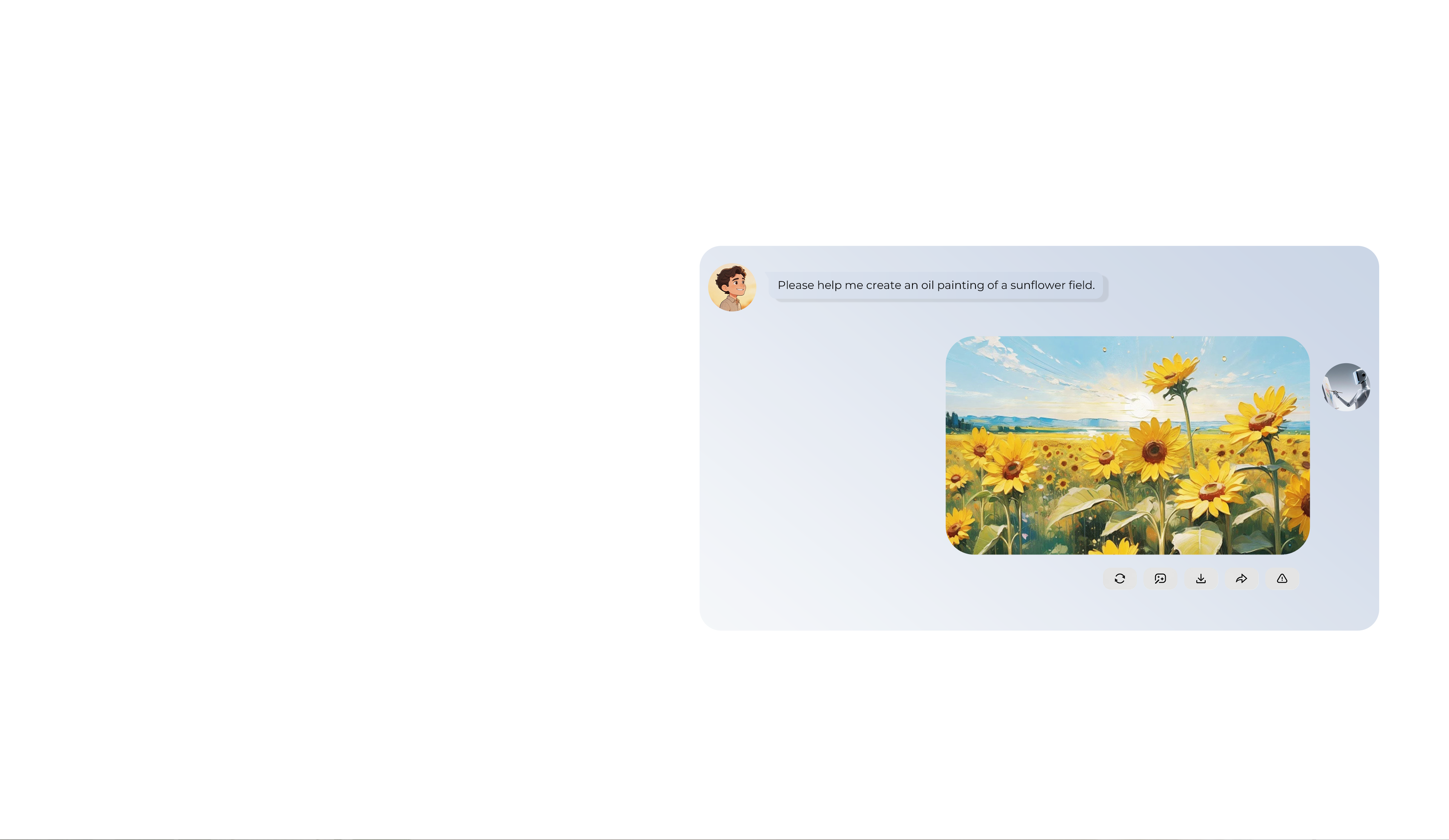

Creative Art

second_image

Transform your ideas into exquisite, expressive visuals. AI understands structure, logic, and style,

infusing every concept with clarity and creative inspiration.

Tutoring assistant

second_image

A warm AI study helper by your side. It patiently explains problems, clears up confusion, and

accompanies you to finish homework effortlessly, making learning no longer stressful.

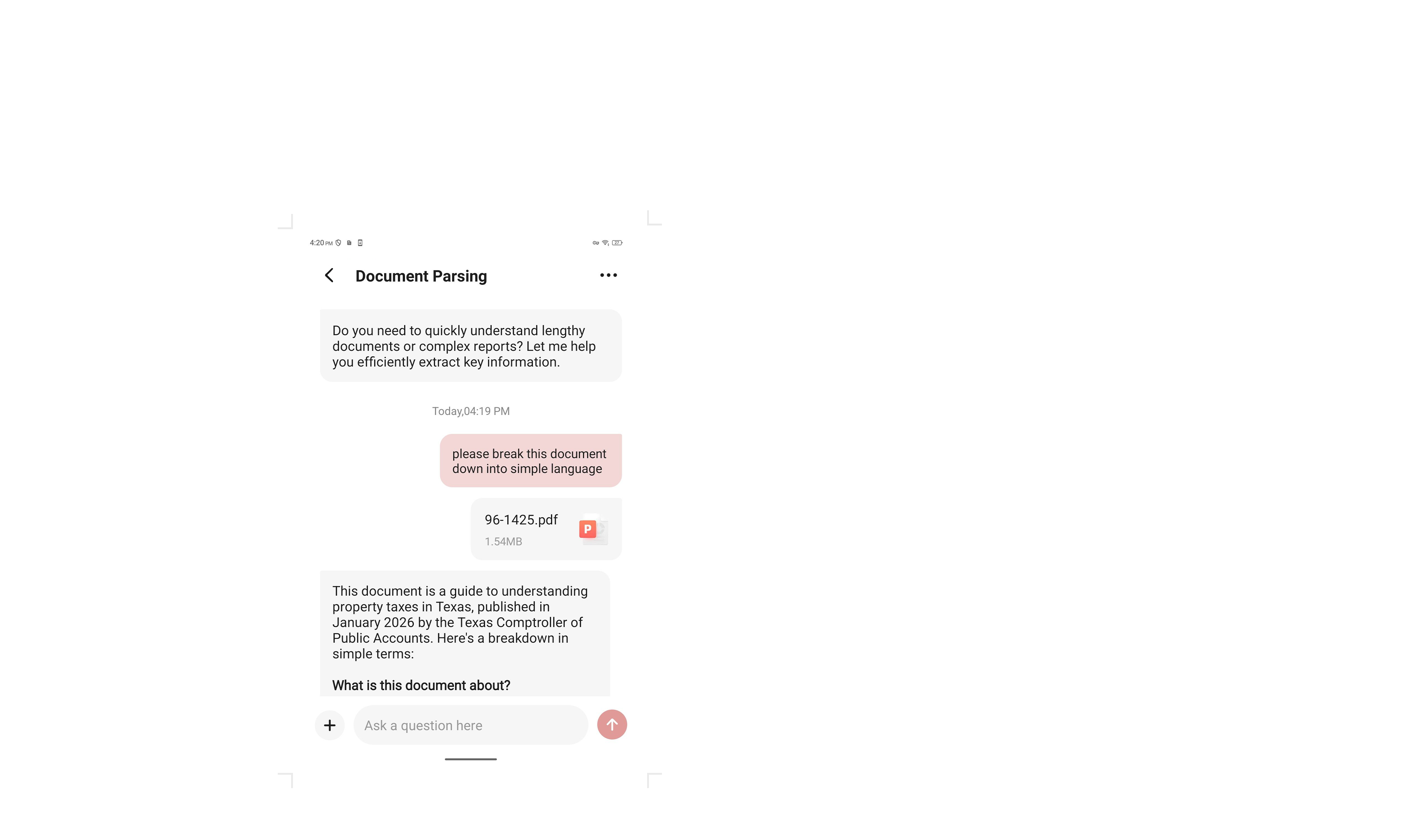

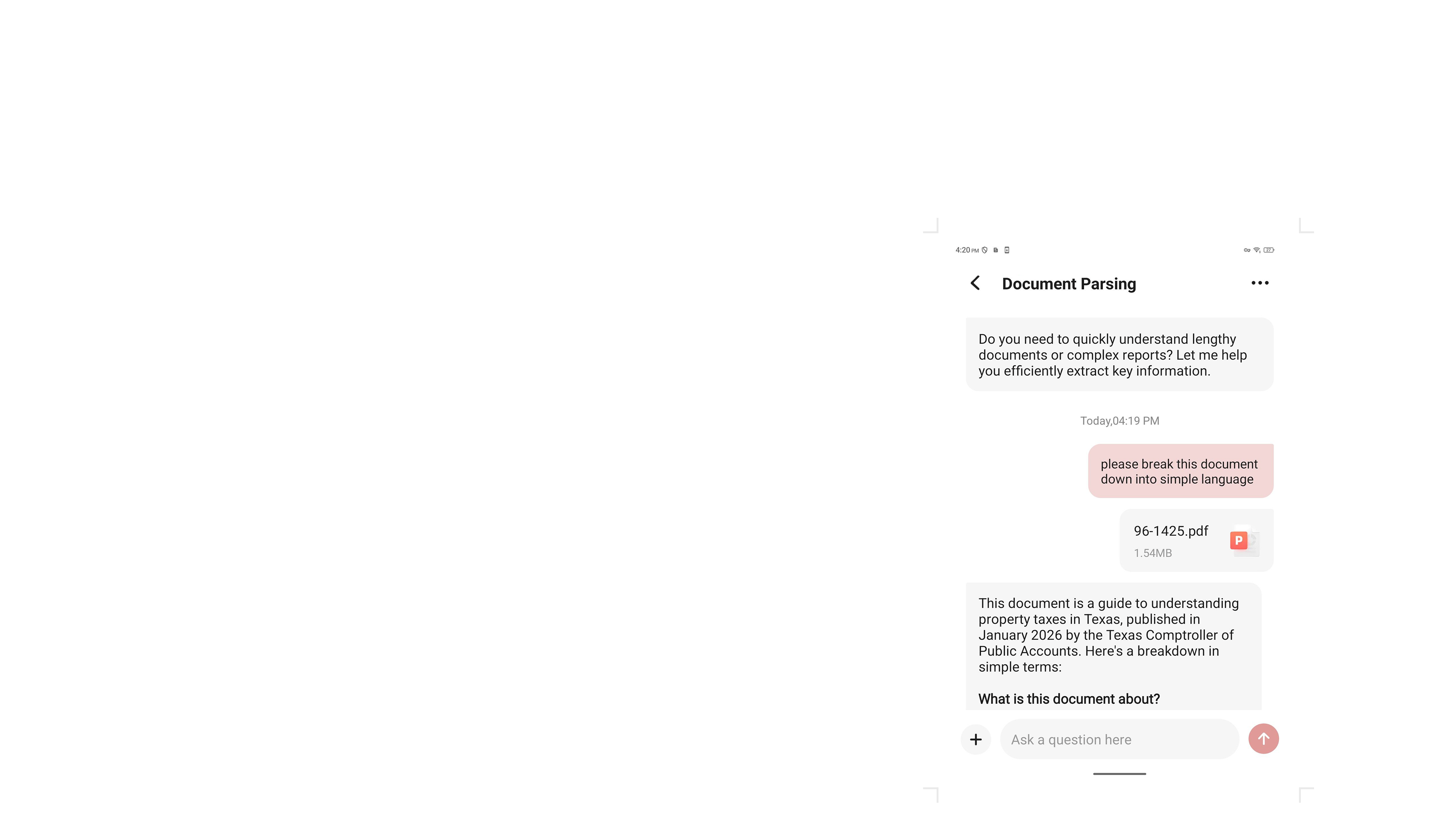

Document Parsing

AI accompanies your data exploration, clarifies complex information,

and brings reliable, clear insights behind every piece of data.

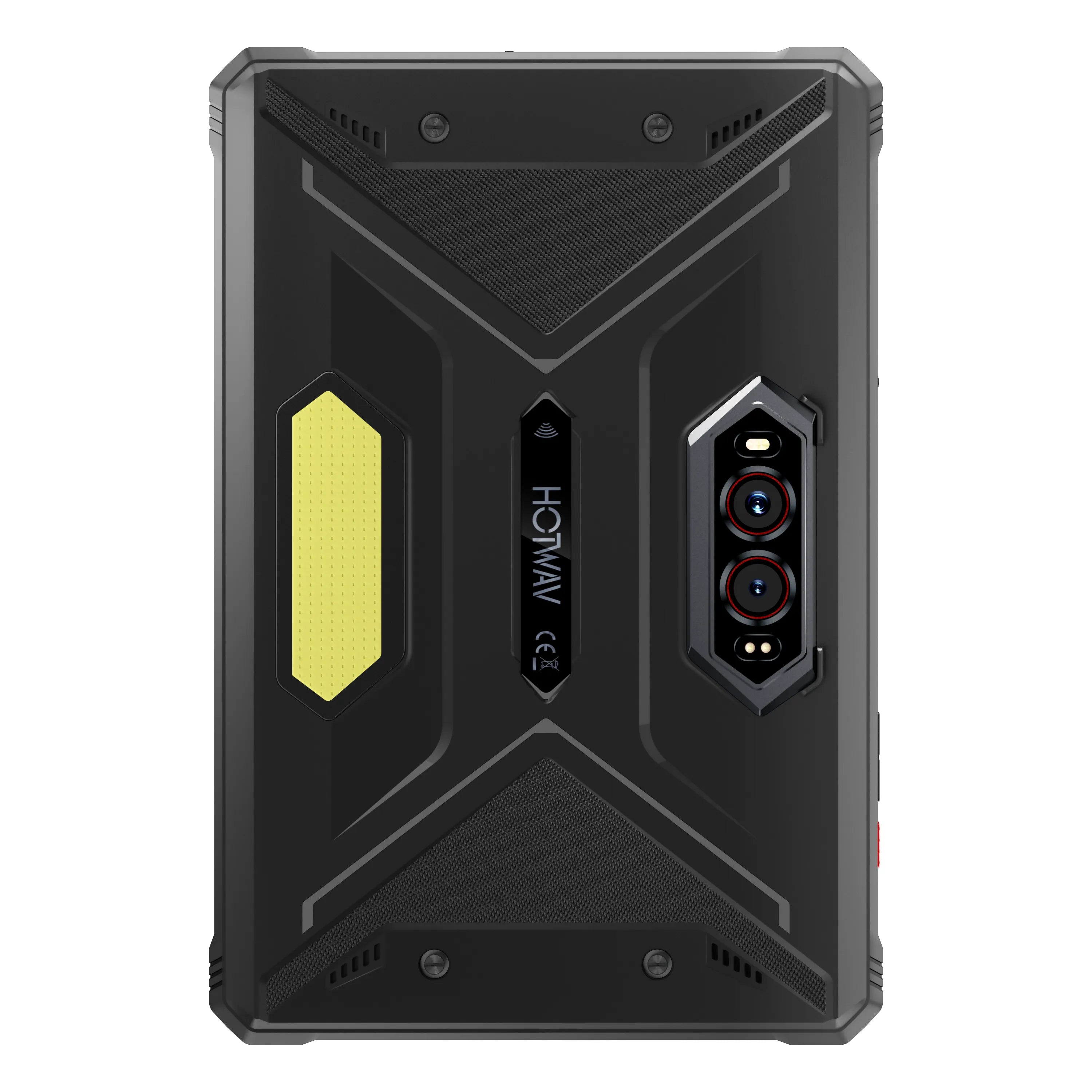

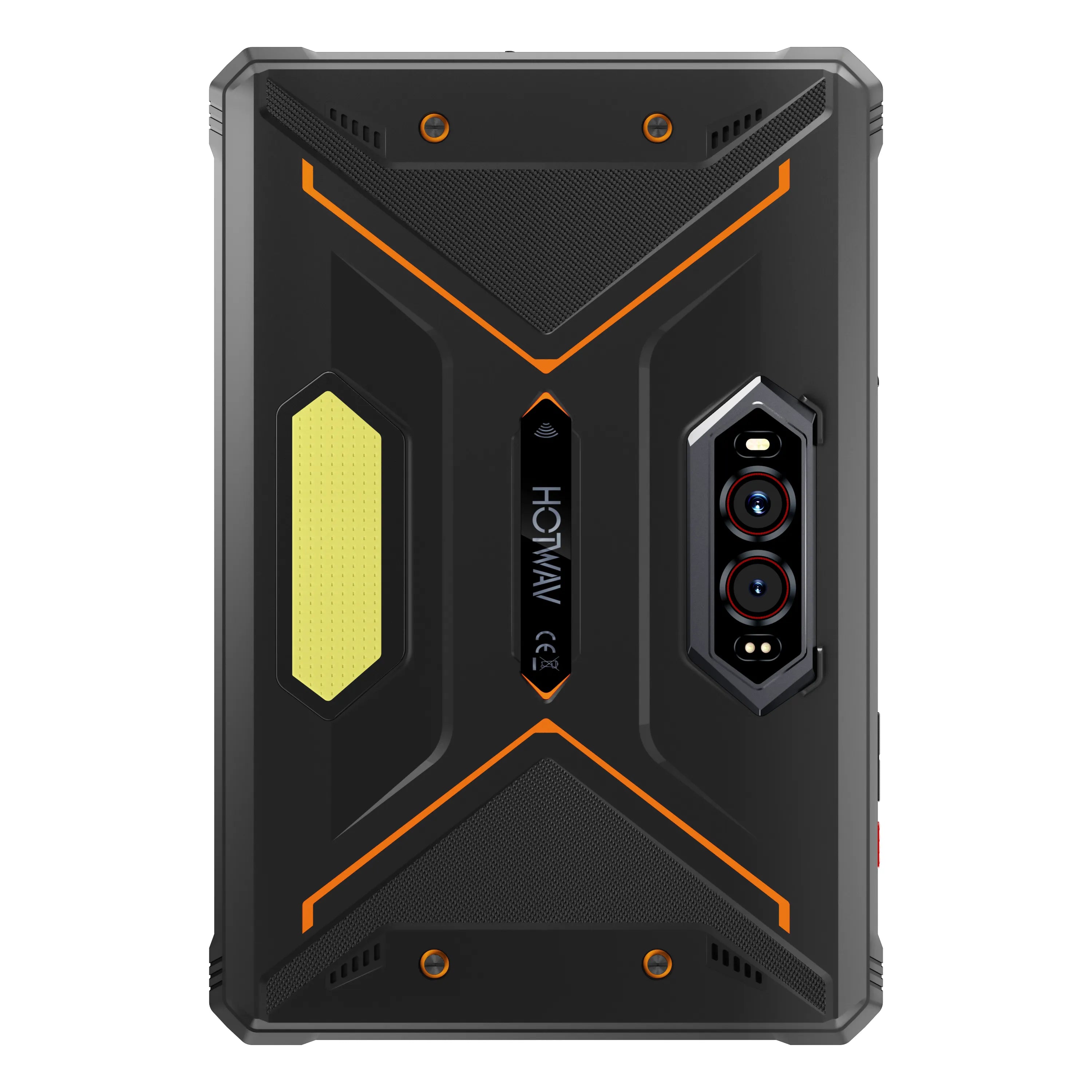

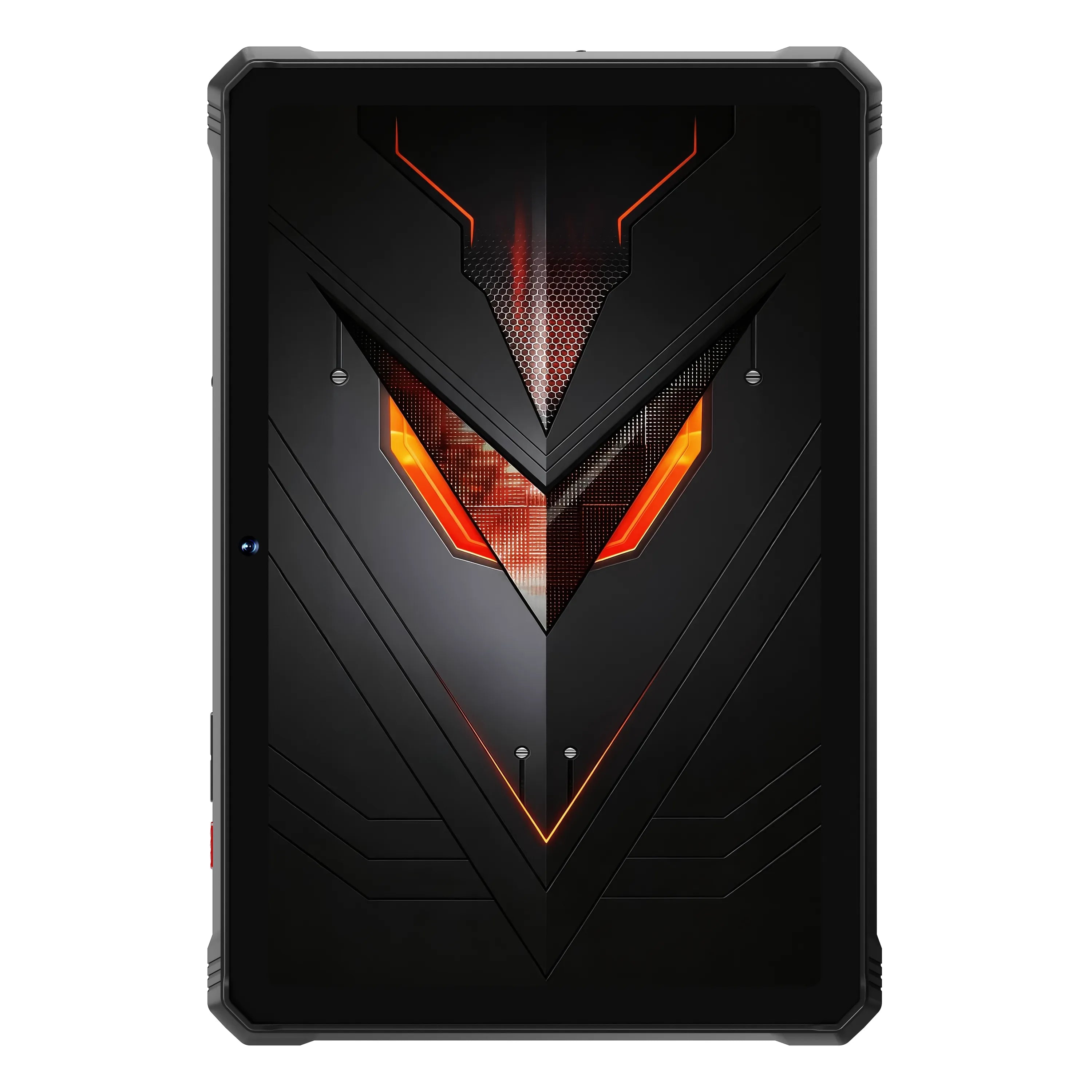

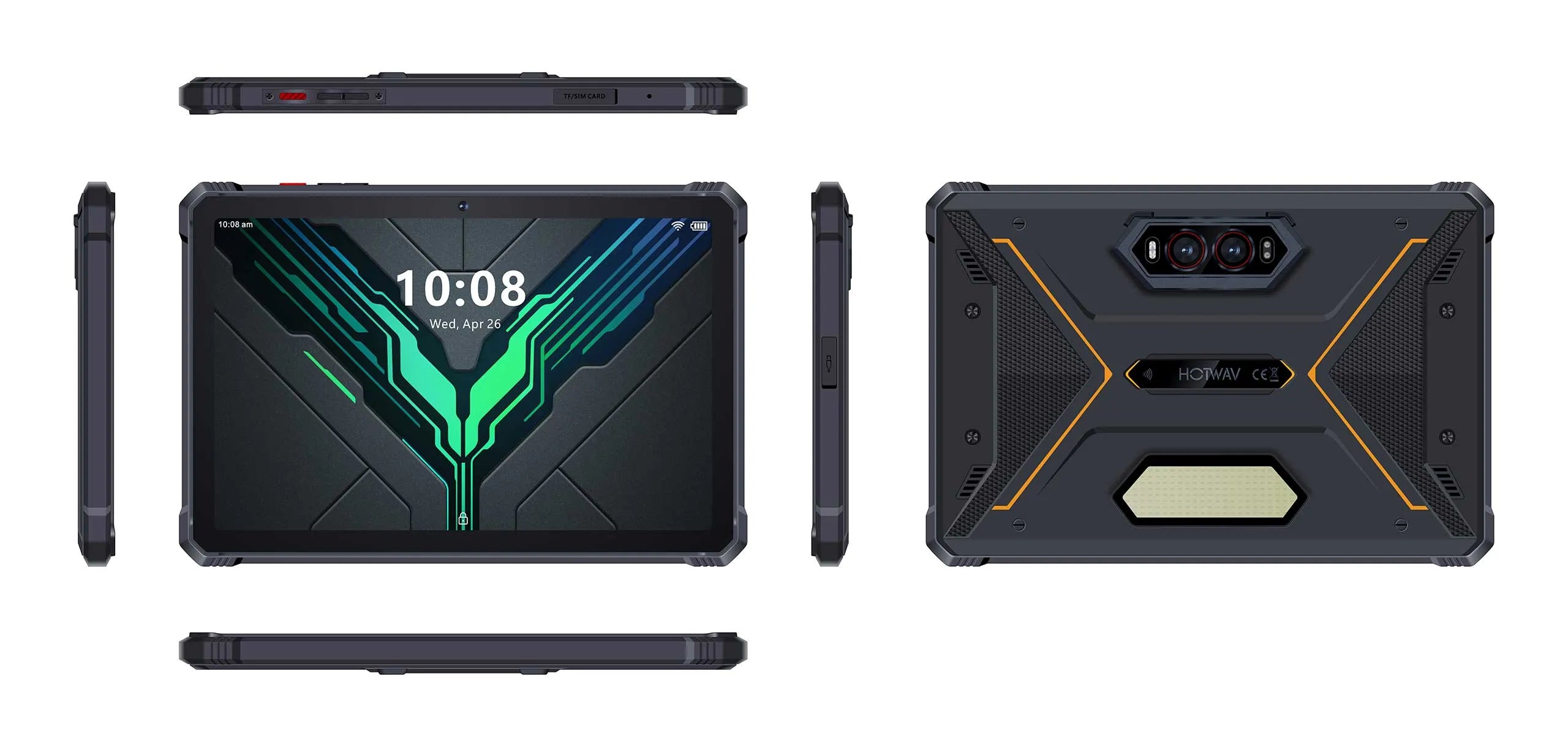

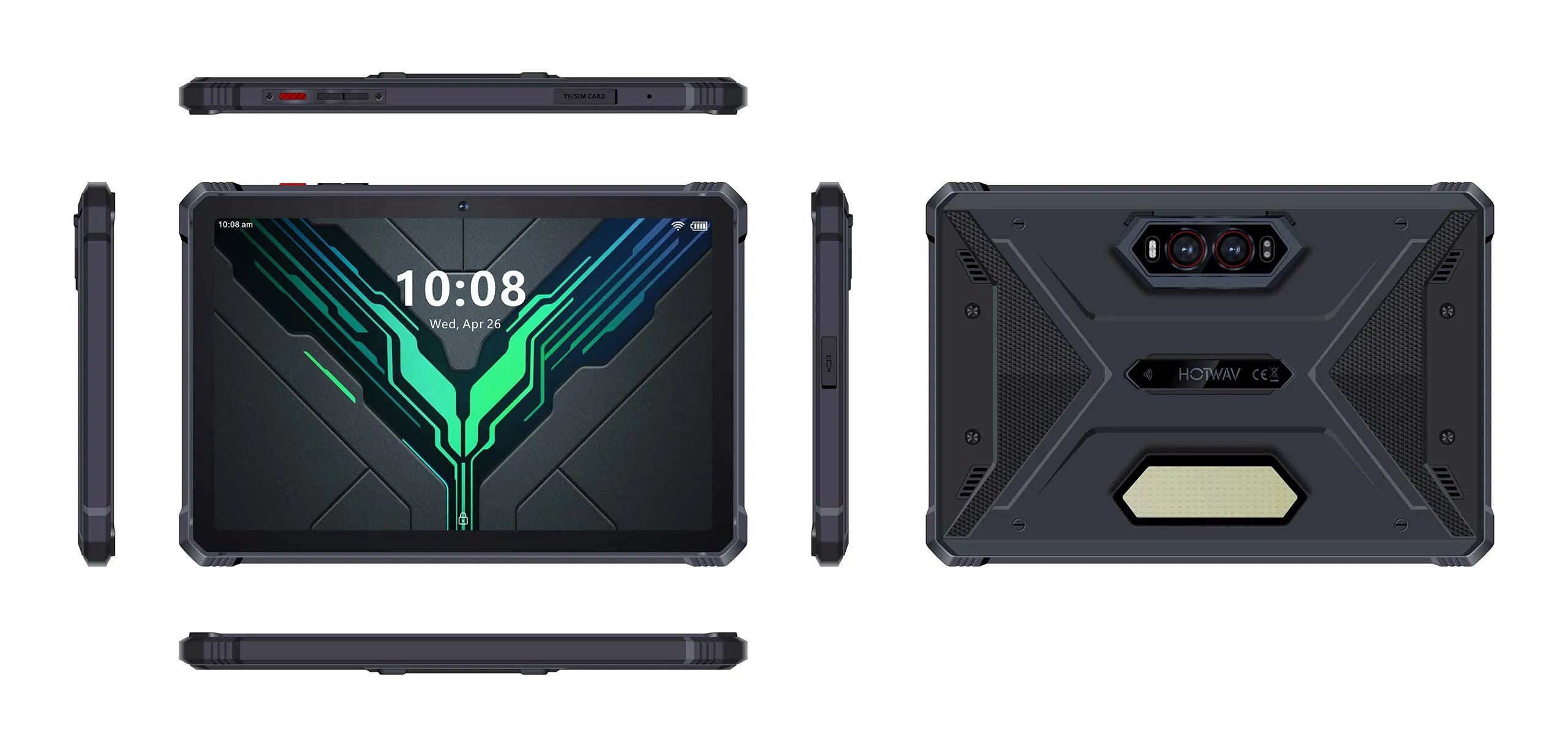

HOTWAV TAB R9 Pro Max Rugged Tablets

Product Color

Platform
	Chipset	Unisoc S713 UMS9621S-T765
	CPU	Two-core Arm® Cortex®-A76 up to 2.3GHz +Six-core Arm® Cortex®-A55up to 2.1GHz
	GPU	Arm® MaliTM -G57 2cores, up to 850MHz
	OS	Android 16.0
	Technology	6nm
	Video Encode	4K 30fps
	Video Decode	4K 30fps

Memory
	RAM/ROM	8G+256G
	Expand memory	12GB
	T-flash Card	open end to 1T

Netwrok
	2G Network	B2/B3/B5/B8
	3G Network	WCDMA:B1/B2/B4/B5/B8
	4G Network	TDD:B38/B39/B40/B41 FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17 /B18/B19/B20/B26/B28A/B28B/B66
	5G Network	n1/2/3/5/7/8/20/28/38/40/41/66/77/78

Body

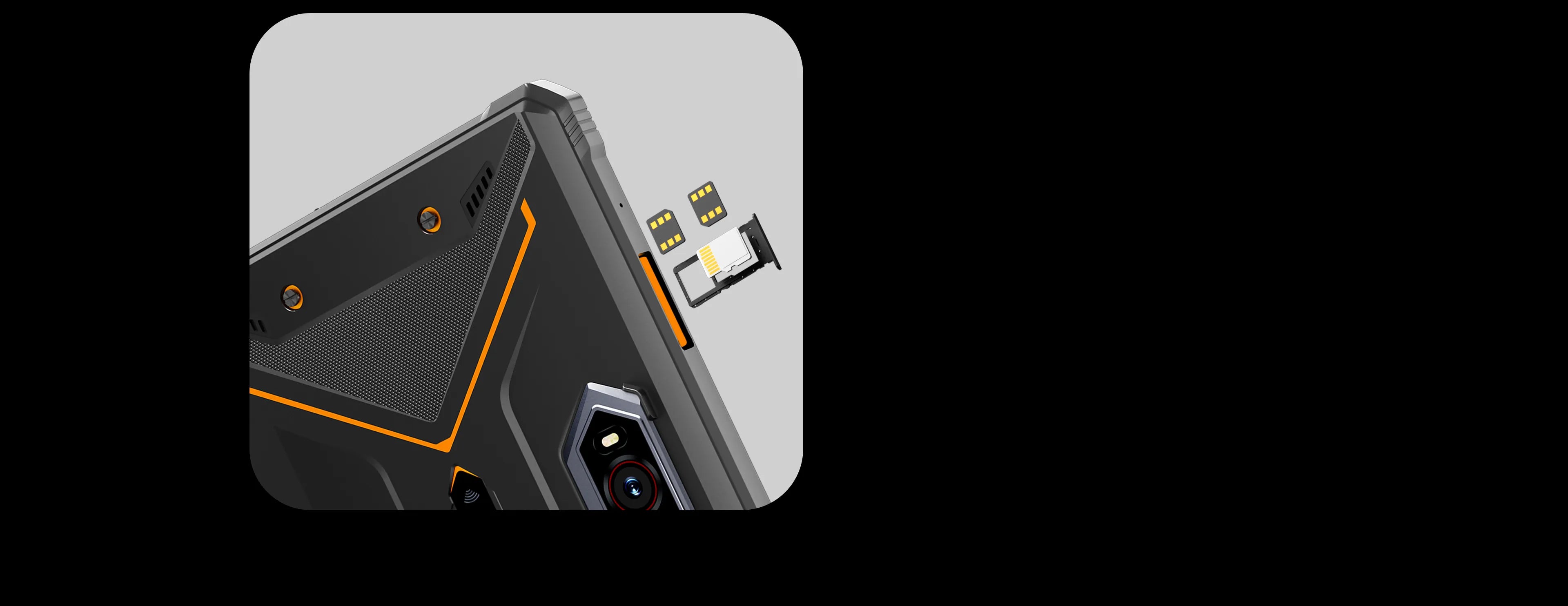

	SIM	Two sim /navo Choose 2 out of 3
	Dimensions	269.6182.017.8mm
	Weight	1065g
	Protection level	IP68/IP69K
	Build	Double-shot molding TPU

Display
	Size	10.95 inch
	Type	INCELL
	Resolution	FHD+（1200*1920）
	Refresh Rate	120HZ
	Pixel Density	207
	Screen Brightness	MIN 400 cd/m2,TYPE 450 cd/m2
	Touch	INCELL
	Glove Mode	Support
	Cover plate material	Corning Glass
	Effective Area	34796m㎡
	Aspect Ratio	14.5:9
	Contrast	1500

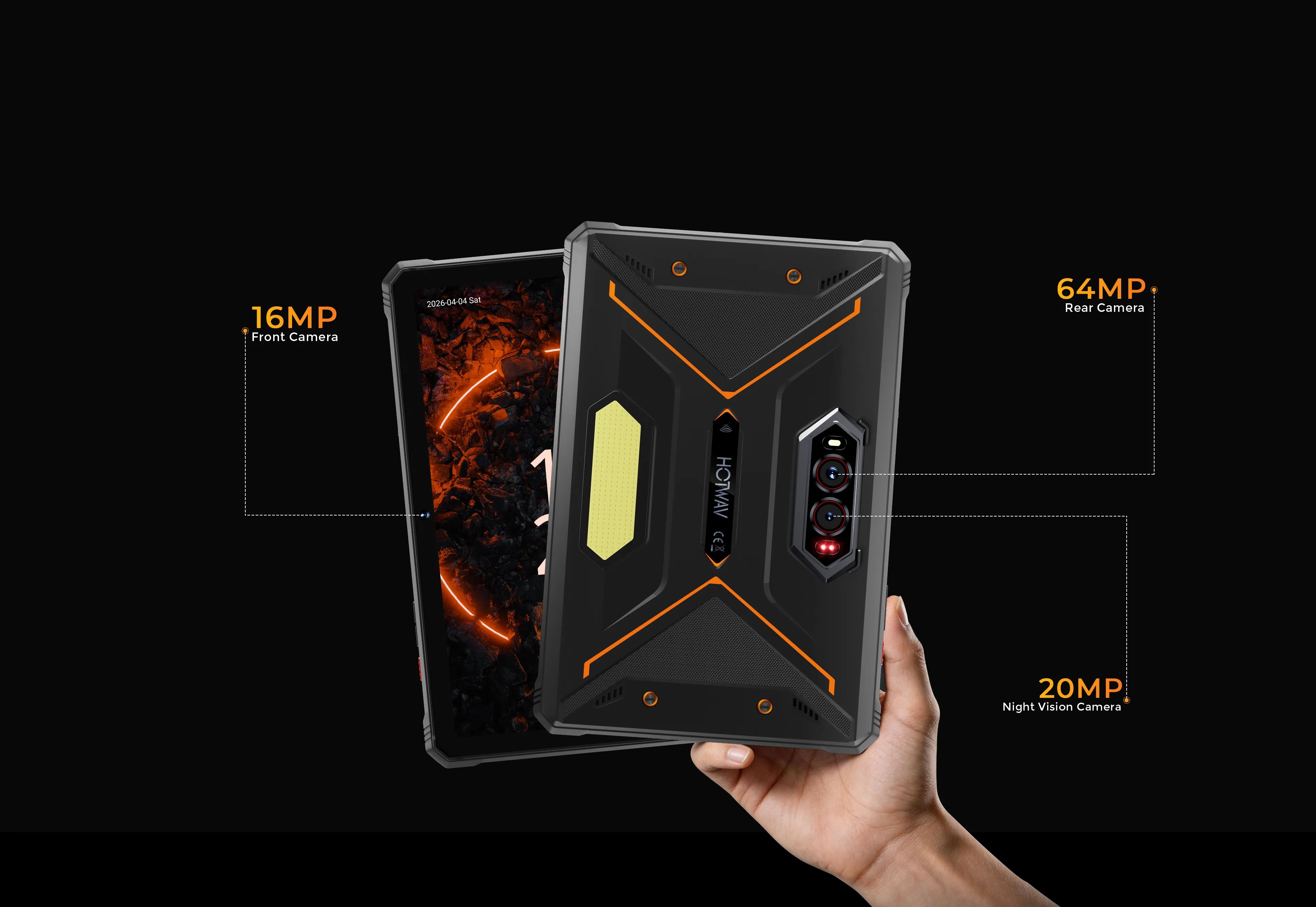

Front Camera
	Pixel	16M(4632*3480)
	Optical Dimension	1/3.09 inch
	Aperture	2
	Wide Angle	77.5°
	Algorithm	Beauty，Virtualization，Portrait
	Focusing Type	FF

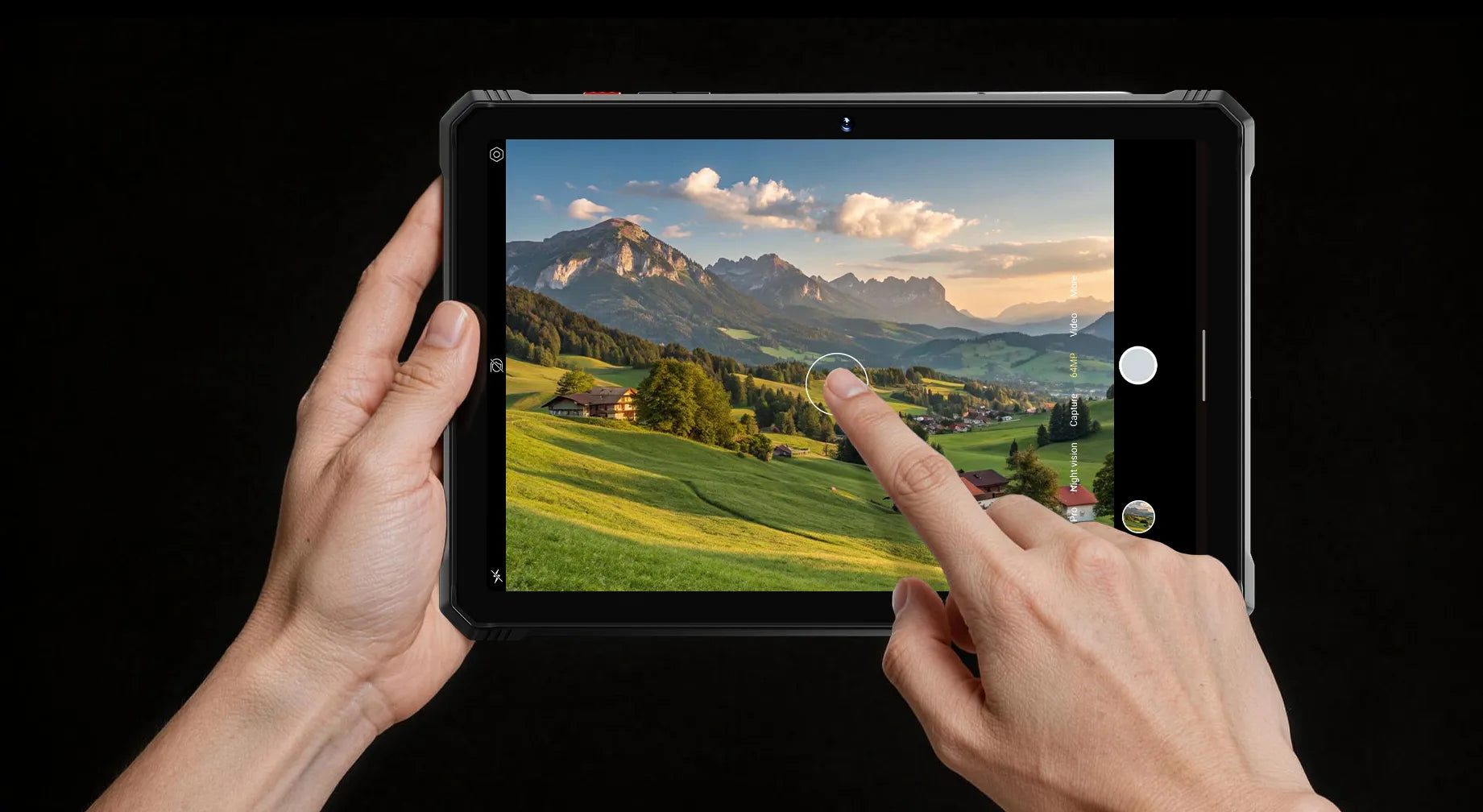

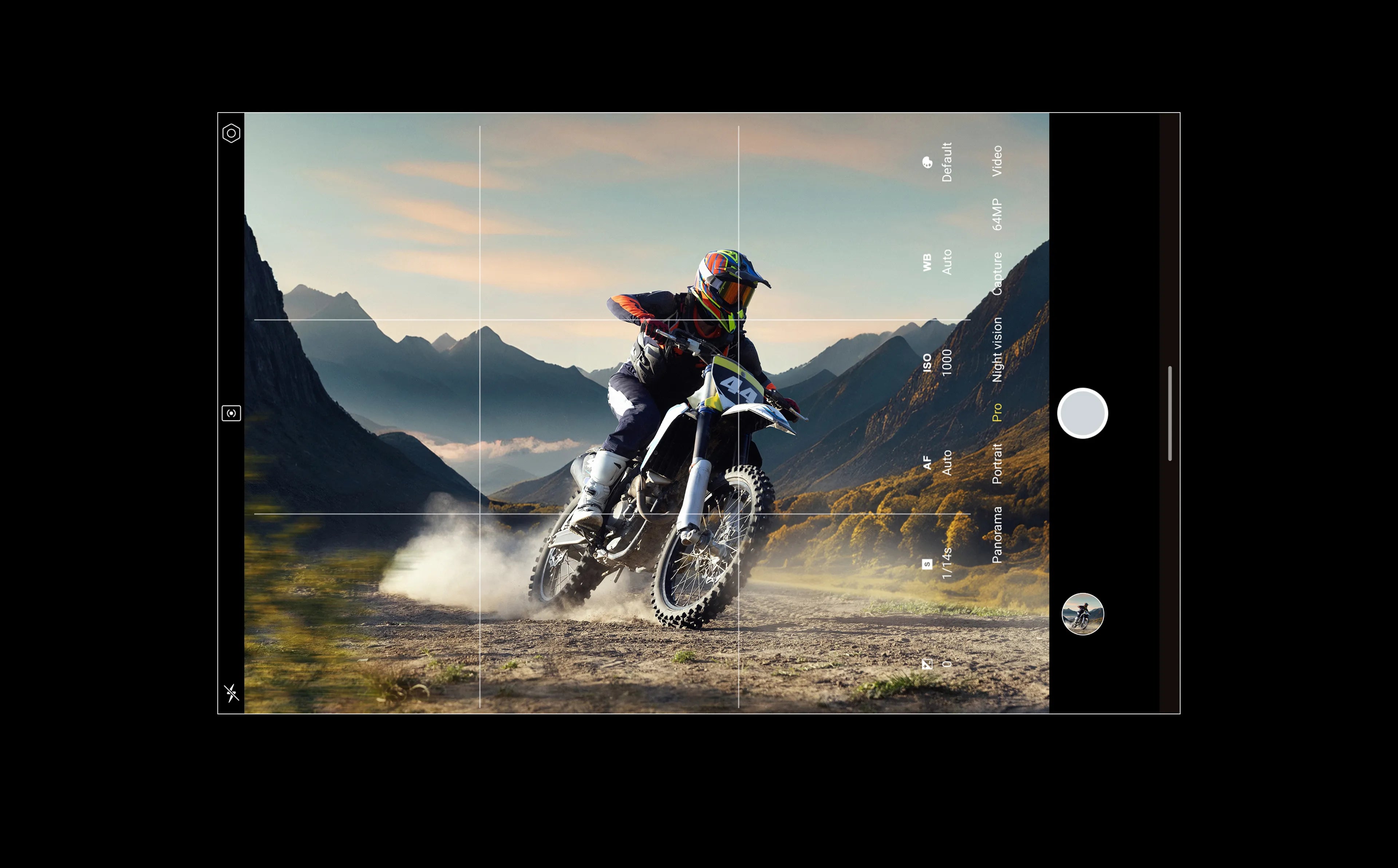

Rear Camera
	Optical Dimension	1/2 inch
	Pixel	64M(9248 *6944)
	Aperture	1.8
	Wide Angle	80°
	LED Flash	Y
	Algorithm	Beauty，Virtualization，Portrait,HDR,Night shot
	Focusing Type	PDAF

Rear sub camera
	Optical Dimension	**
	Pixel	20M
	Aperture	2.2士5%
	Wide Angle	77°
	Focusing Type	AF

Camping light
	Power	6W 3-6W（3.0V-4V/1-2A）
	Endurance	14H
	lumen	350lumen 246pcs LED

Battery
	Capacity	20080 mAh
	Charging Frequency	20W
	Material	polymer
	Voltage	4.45V
	Capaicity Coefficient	1.82
	Standby time	3000H Pending actual test
	Talk time	100H Pending actual test
	Music Play time	1000H Pending actual test

Transmission
	Interface	TYPE-C
	Usb protocol	USB2.0

Features
	Face ID	Support
	GPS	GPS+BEIDOU+GLONASS+Galileo
	Wi-Fi	WIFI 5
	WLAN	2.4+5G
	WLAN Hotspot	Support
	Bluetooth	BT 5.0
	OTG， G-sensor	Support
	Compass (magnetic）， Geomagnetism	Support
	Rapid Charge， Sound Amplifier	Support
	FOTA Upgrade OTA	Support
	Supported Languages	ALL

Sound
	Alert Types	Smart PA
	Loudspeaker	1511 AAC BOX
	Headphone jack	Type-c Headphone

Entertainment Features
	Video, Radio, MMS	Support
	Book	Support Support（Download by users for third party APP）
	Flash Broadcast	Support Support（Download by users for third party APP）
	Browser	Support (Download by users for third party APP）
	Navigation	Support （Download by users for third party APP）
	Video Playback	Support AVI, MP4, WMV, RMVB, MKV, MOV, ASF, RM, FLV and other video formats, up to 1080p / 30fps
	Video Produce	Highest support 1080p@30fps video shooting
	Audioplayer	Support MP3, M4A, AAC, MKA, AMRAnd other video formats / supports lossless format：ALAC(Apple Lossless), FLAC, APE, WAV
	Graphic Format	Support JPEG, BMP, GIF,PNG etc.

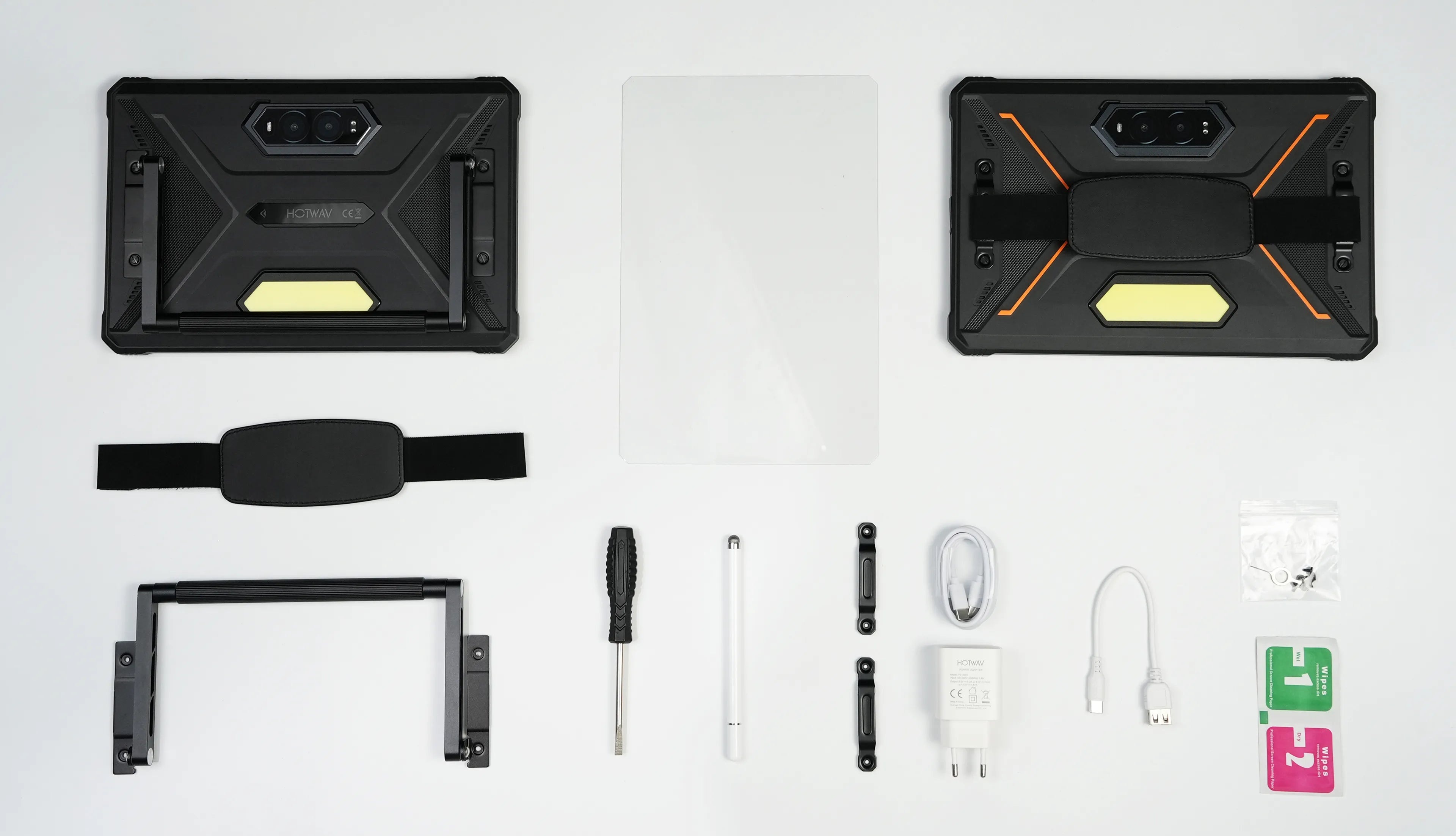

Standard Accessories
	Battery	Standard
	Data Cable	3A
	OTG Cable	YES
	Charger	9V2.22A Standard （20W）
	Giftbox	Standard
	User manual, Warranty Card, Color protective film	Y

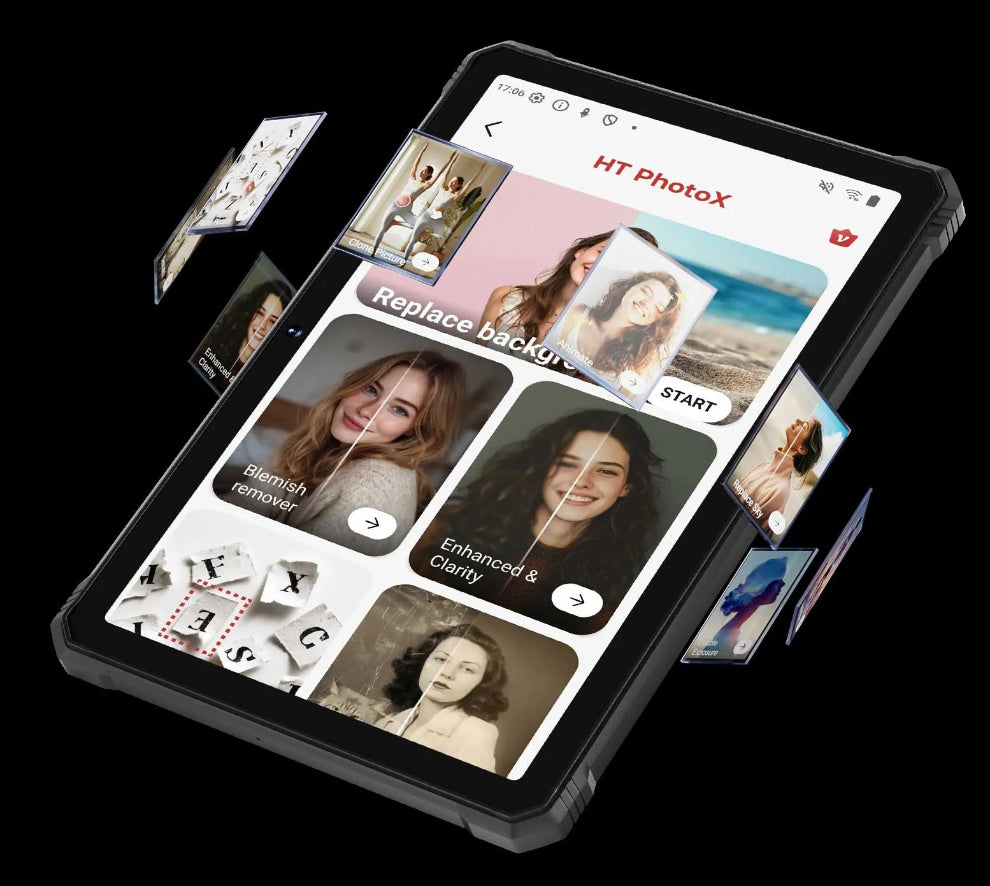

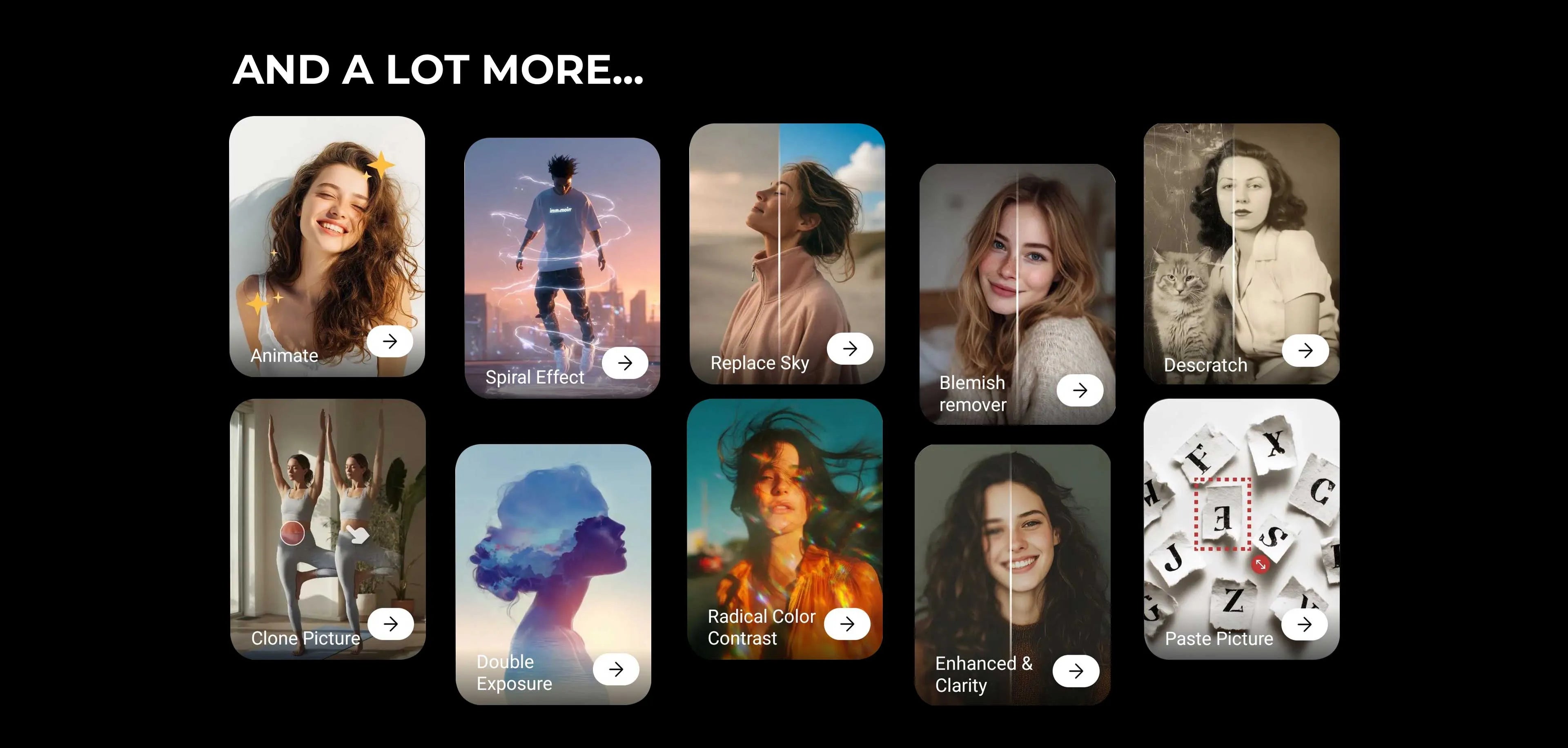

HT PhotoX:

Enter a new world of image editing with the magic stone of AI. Remove unwanted objects, transform elements, add dazzling effects, and watch your photos come alive with just a few taps.

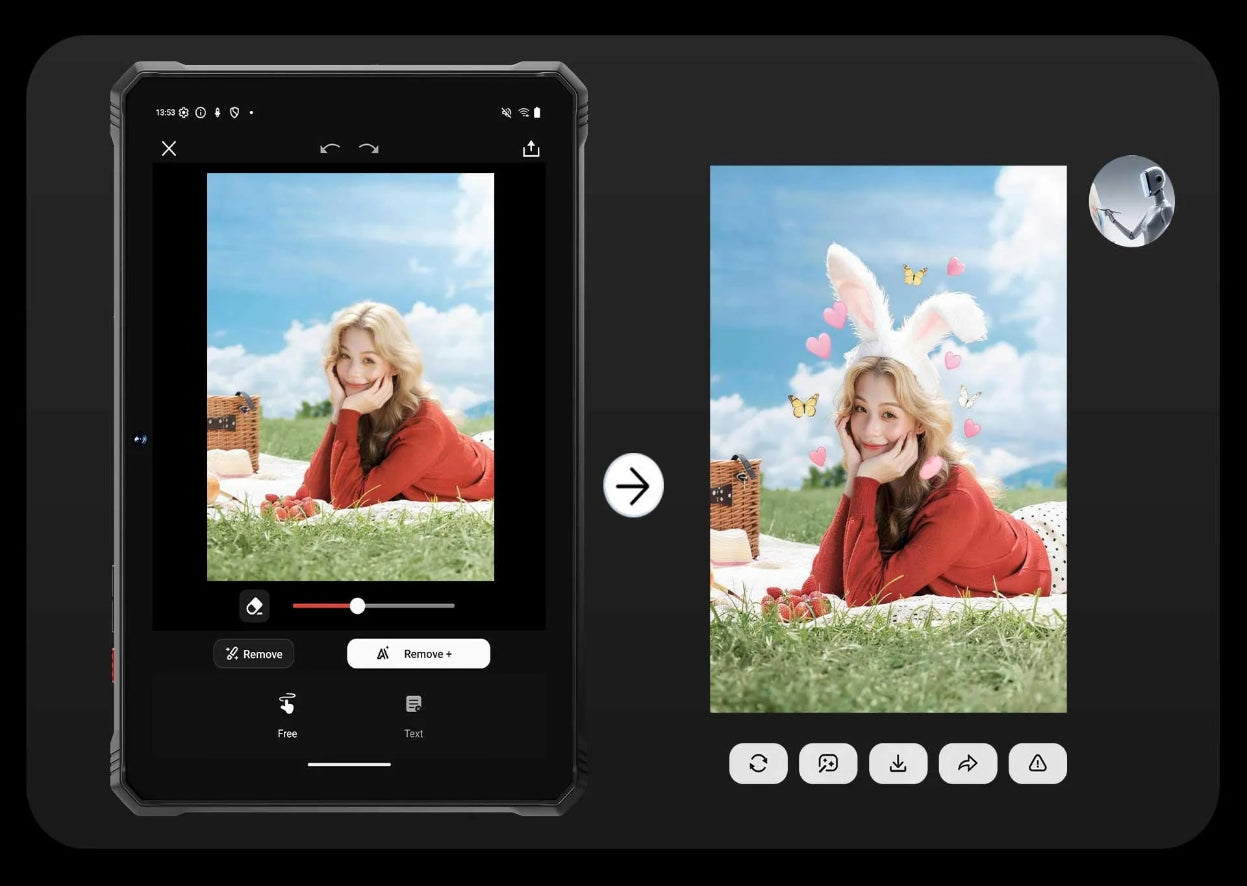

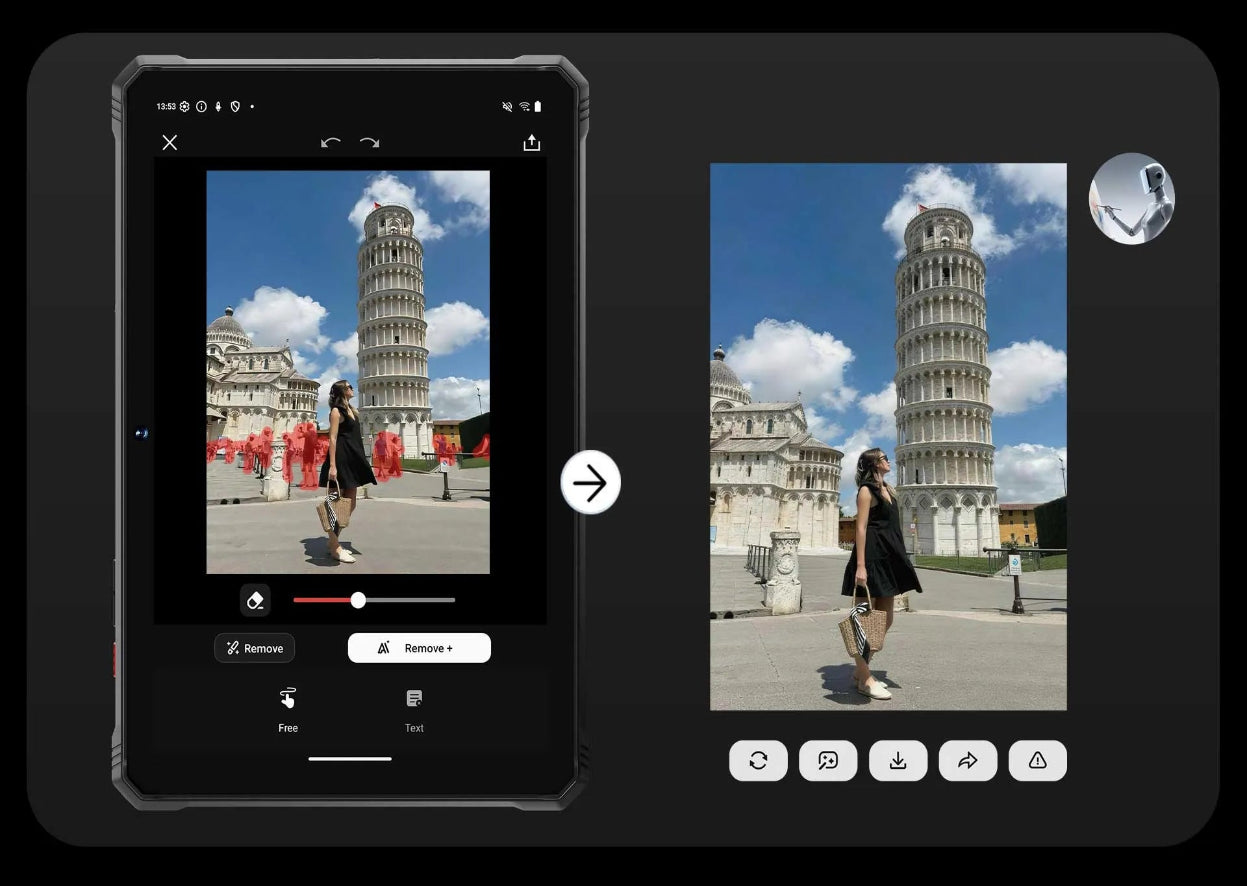

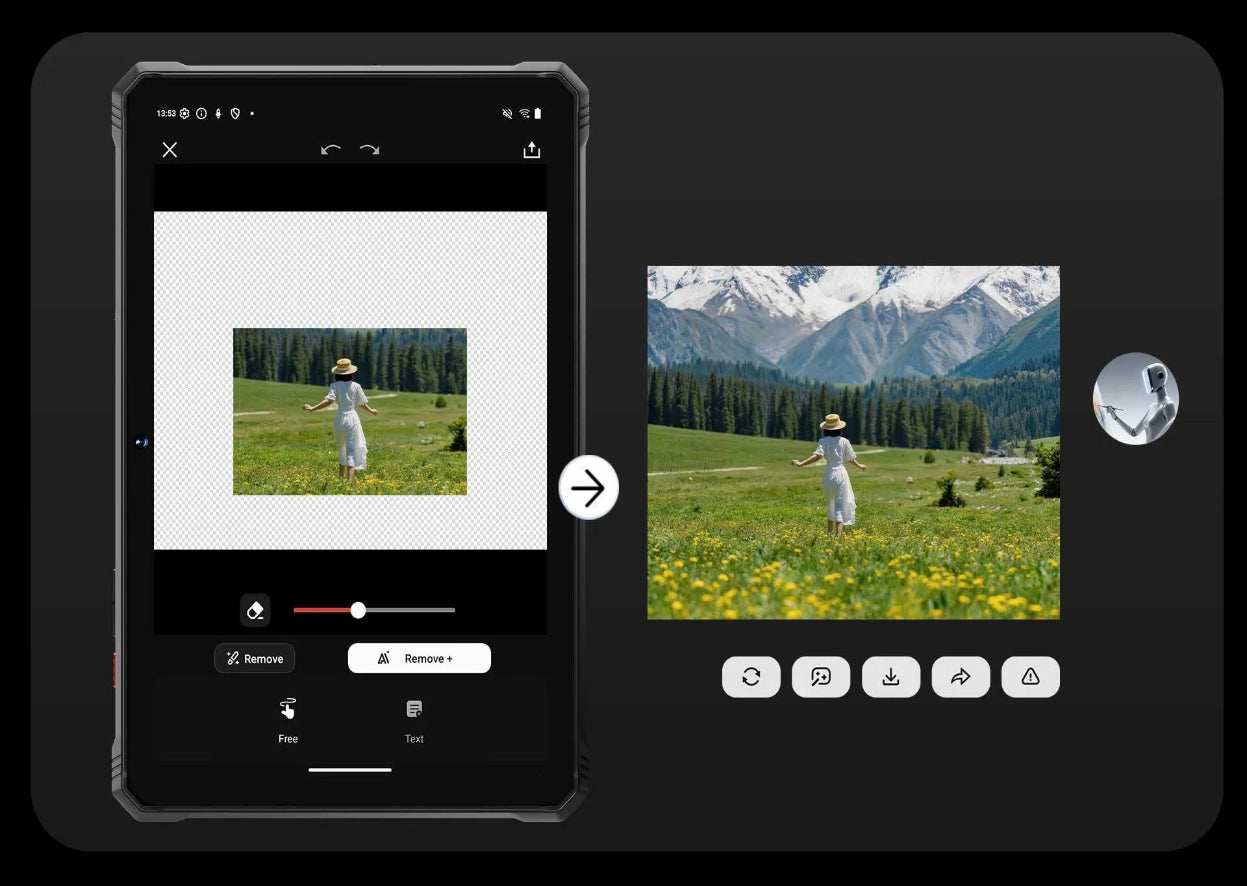

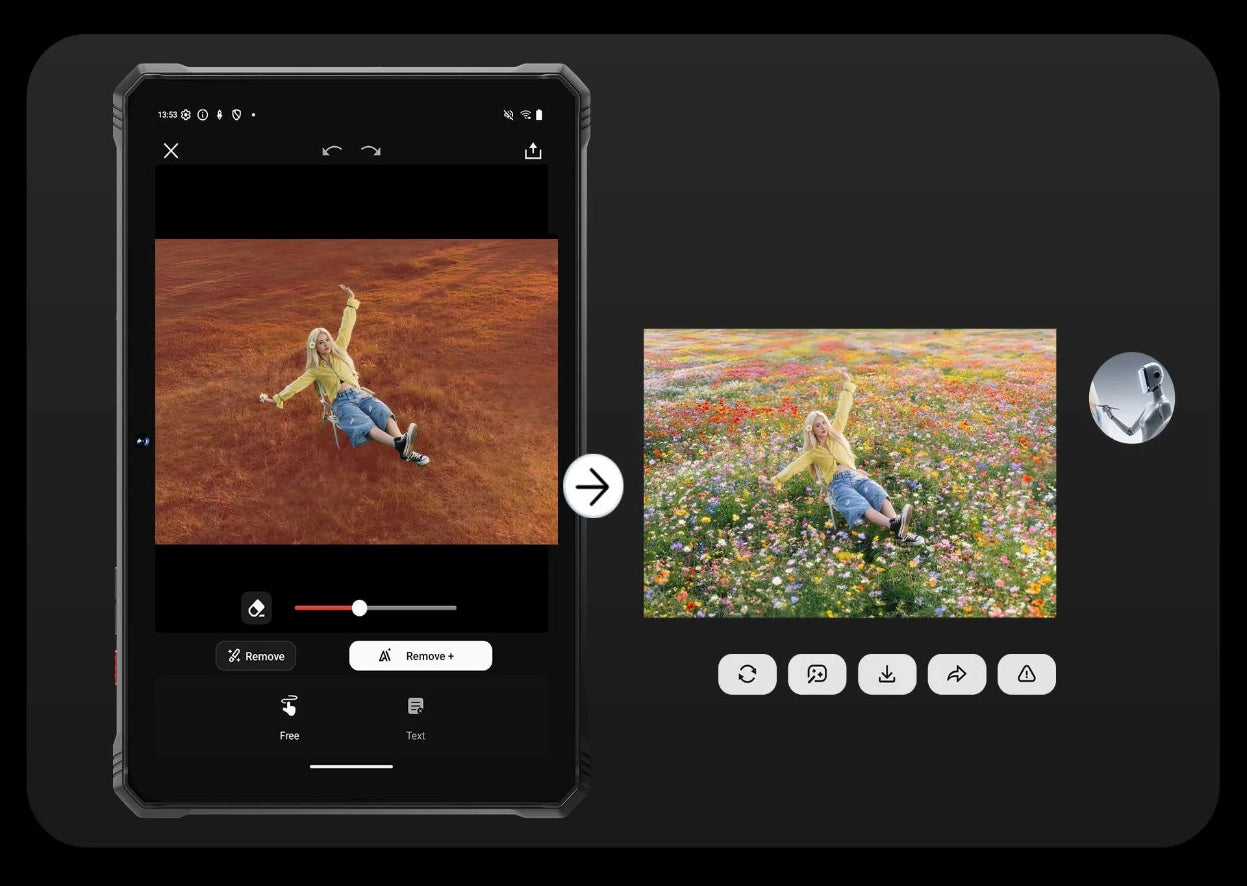

AI-powered Object Removal

Easily remove unwanted objects in seconds with AI technology, no Photoshop mastery required.

AI Retouching

Work your magic with AI technology and unlock endless possibilities in every photo you love.

AI OutPainting

When you hit a creator's block, let AI take over and see what it comes up with.

Quick Photo Editting

Spend just a few minutes adding fun effects or quick touch-ups to your photos, and share them instantly with your loved ones on social media.

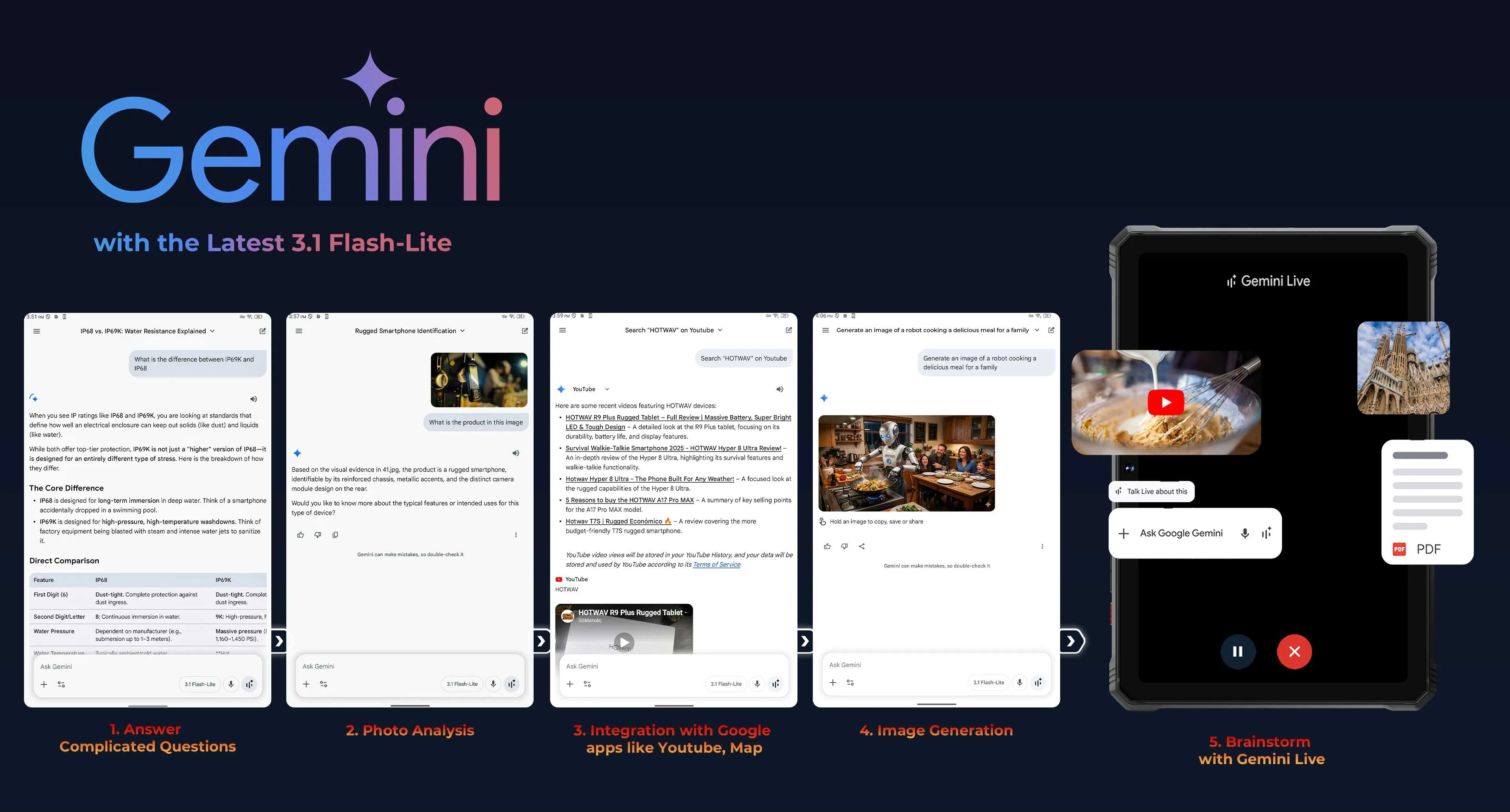

HOTWAV R9 Pro Max is supercharged by Google Gemini's latest 3.1 Flash-Lite. Exper
ience lightning fast AI responsiveness, instant text translation, and smart voice
assistance right in your pocket. Speed meets intelligence to elevate your daily routine
with efficiency redefined.

8GB RAM with 12GB Expansion:
Power Through Every Task

HOTWAV R9 Pro Max comes equipped with 8GB of RAM, with additional 12GB's maximum memory
expansion for enhanced performance. It handles demanding tasks with ease, allowing you to move between navigation, streaming,
gaming, and capturing moments without lag or interruption.

8GB RAM with 12GB Expansion:
Power Through Every Task

HOTWAV R9 Pro Max comes equipped with 8GB of RAM, with additional 12GB's maximum memory
expansion for enhanced performance. It handles demanding tasks with ease, allowing you to move between navigation, streaming,
gaming, and capturing moments without lag or interruption.

256GB Built-in Storage for Everything That Matters

Store more, do more. With 256GB's internal storage on HOTWAV R9 Pro Max and up to 2TB's microSD card
expandable capacity, you have room for your files, media, and projects without worrying about limits.

256GB Built-in Storage for Everything That Matters

Store more, do more. With 256GB's internal storage on HOTWAV R9 Pro Max and up to 2TB's microSD card
expandable capacity, you have room for your files, media, and projects without worrying about limits.

120Hz Refresh Rate

A high refresh rate brings every interaction to life. On HOTWAV R9 Pro Max, scrolling, gaming, andwatching
all feel fluid and responsive, making every moment more immersive.

120Hz Refresh Rate

A high refresh rate brings every interaction to life. On HOTWAV R9 Pro Max, scrolling, gaming, andwatching
all feel fluid and responsive, making every moment more immersive.

Capture Stunning Moments with the
PureCel®Plus 64MP Main Camera

Equipped with a powerful OMNIVISION OV64B sensor, HOTWAV R9 Pro Max delivers crisp, detailed photos in a wide
range of lighting conditions. The PureCel®Plus technology enhances clarity and color, while built-in stabilization keeps every shot steady. From
outdoor adventures to everyday moments, your photos come out sharp, vivid, and full of life.

Capture Stunning Moments with the
PureCel®Plus 64MP Main Camera

Equipped with a powerful OMNIVISION OV64B sensor, HOTWAV R9 Pro Max delivers crisp, detailed photos in a wide
range of lighting conditions. The PureCel®Plus technology enhances clarity and color, while built-in stabilization keeps every shot steady. From
outdoor adventures to everyday moments, your photos come out sharp, vivid, and full of life.

Night Mode

Unveil hidden beauty in low light with Night Mode, delivering bright, clear photos anytime, anywhere.

64MP

Capture stunning details with the 64MP camera mode, bringing your photos to life in clarity.

Pro Mode

Take full control with Pro Mode, fine-tuning every shot for professional-level photos and precision.

Pro Mode

Take full control with Pro Mode, fine-tuning every shot for professional-level photos and precision.

Panorama Mode

Capture breathtaking wide shots with Panorama Mode, letting you fit more scenery, friends, and memories into every stunning photo.

Panorama Mode

Capture breathtaking wide shots with Panorama Mode, letting you fit more scenery, friends, and memories into every stunning photo.

16MP Front Camera for Clear, Natural Selfies

HOTWAV R9 Pro Max's 16MP front camera delivers clear, vibrant selfies with natural color and detail. Whether you are
capturing quick moments or staying connected with others, every shot looks sharp and expressive.

16MP Front Camera for Clear, Natural Selfies

HOTWAV R9 Pro Max's 16MP front camera delivers clear, vibrant selfies with natural color and detail. Whether you are
capturing quick moments or staying connected with others, every shot looks sharp and expressive.

Night vision Camera: See the Night in Full Clarity

Night becomes an opportunity with HOTWAV R9 Pro Max's advanced night vision capabilities. Capture clear, detailed images even in low light
environments with the high-performance 20MP Sony Nightvision camera and discover what others cannot see.

Night vision Camera: See the Night in Full Clarity

Night becomes an opportunity with HOTWAV R9 Pro Max's advanced night vision capabilities. Capture clear, detailed images even in low light
environments with the high-performance 20MP Sony Nightvision camera and discover what others cannot see.

Cinematic 4K Video, Frame by Frame

Record in crisp 4K resolution and capture every detail with clarity. From important moments to creative projects, your footage on
HOTWAV R9 Pro Max appears sharp, vibrant, and full of depth. It delivers a reliable, high-quality video experience with ease.

Cinematic 4K Video, Frame by Frame

Record in crisp 4K resolution and capture every detail with clarity. From important moments to creative projects, your footage on
HOTWAV R9 Pro Max appears sharp, vibrant, and full of depth. It delivers a reliable, high-quality video experience with ease.

Refined for the Modern Explorer: Android 16

Powered by Android 16, HOTWAV R9 Pro Max delivers a refined and intuitive experience. Navigation feels
natural, interactions respond instantly, and every detail is designed for ease of use. From everyday tasks to more
demanding needs, everything flows with consistency, precision, and quiet efficiency.

Refined for the Modern Explorer: Android 16

Powered by Android 16, HOTWAV R9 Pro Max delivers a refined and intuitive experience. Navigation feels
natural, interactions respond instantly, and every detail is designed for ease of use. From everyday tasks to more
demanding needs, everything flows with consistency, precision, and quiet efficiency.

Beidou, Galileo, Glonass and GPS

Stay on track wherever you go. With support for Beidou, Galileo, Glonass, and GPS, HOTWAV
R9 Pro Max provides accurate positioning across cities, highways, and remote terrain. No matter the destination, you
move forward with confidence, guided every step of the way.

Beidou, Galileo, Glonass and GPS

Stay on track wherever you go. With support for Beidou, Galileo, Glonass, and GPS, HOTWAV
R9 Pro Max provides accurate positioning across cities, highways, and remote terrain. No matter the destination, you
move forward with confidence, guided every step of the way.

High Quality Streaming Without Limits:
Widevine L1 Enabled

Enjoy your favorite content in clear, high-definition quality. With Widevine L1 support, HOTWAV
R9 Pro Max unlocks smooth Full HD playback on leading platforms such as Netflix and Amazon Prime Video,
bringing sharper visuals and a more immersive viewing experience.

High Quality Streaming Without Limits:
Widevine L1 Enabled

Enjoy your favorite content in clear, high-definition quality. With Widevine L1 support, HOTWAV
R9 Pro Max unlocks smooth Full HD playback on leading platforms such as Netflix and Amazon Prime Video,
bringing sharper visuals and a more immersive viewing experience.

Glove Mode That Lets
You Take Control

Keep control in any environment. HOTWAV R9 Pro
Max's display responds accurately even when you
are wearing gloves, so you can scroll, type, and
interact without interruption. Whether you are outdoors
in the cold or working in demanding conditions, us
ability remains effortless.

Glove Mode That Lets
You Take Control

Keep control in any environment. HOTWAV R9 Pro
Max's display responds accurately even when you
are wearing gloves, so you can scroll, type, and
interact without interruption. Whether you are outdoors
in the cold or working in demanding conditions, us
ability remains effortless.

Face ID: Effortless Unlock at a Glance

Access your HOTWAV R9 Pro Max in an instant with
facial recognition designed for both speed and
security. A quick look is all it takes to unlock your device,
creating a smooth and seamless start every time you
pick it up.

Face ID: Effortless Unlock at a Glance

Access your HOTWAV R9 Pro Max in an instant with
facial recognition designed for both speed and
security. A quick look is all it takes to unlock your device,
creating a smooth and seamless start every time you
pick it up.

Stable and Fast Wi-Fi Performance

Stay connected with reliable Wi-Fi on HOTWAV R9
Pro Max that adapts to your needs. With support for
both 2.4GHz and 5GHz bands, the HOTWAV R9 Pro
Max delivers smooth browsing, steady video calls,
and uninterrupted streaming across different
environments.

Stable and Fast Wi-Fi Performance

Stay connected with reliable Wi-Fi on HOTWAV R9
Pro Max that adapts to your needs. With support for
both 2.4GHz and 5GHz bands, the HOTWAV R9 Pro
Max delivers smooth browsing, steady video calls,
and uninterrupted streaming across different
environments.

Seamless Bluetooth Connectivity

Connect and go without hassle. Bluetooth 5.0
on HOTWAV R9 Pro Max ensures fast pairing,
stable connections, and efficient performance
for audio, calls, and file transfers. Whether you
are listening, sharing, or communicating, every-
thing works smoothly in the background.

Seamless Bluetooth Connectivity

Connect and go without hassle. Bluetooth 5.0
on HOTWAV R9 Pro Max ensures fast pairing,
stable connections, and efficient performance
for audio, calls, and file transfers. Whether you
are listening, sharing, or communicating, every-
thing works smoothly in the background.

Dual Nano SIM:
Ample Flexibility

Balance work and personal life on a single
device. Dual nano SIM support allows you to
manage two numbers with ease, making it
simple to stay connected, switch networks,
and keep communication flowing wherever
you are.
